6.6 Inch TFT LCD Display Module, 4098×2560 Resolution, 50pins For 3D Printer

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX2011A0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 6.6 " Resolution 4098×2560
Brightness 350cd/m2 View Angle Free View Angle
Interface 50pins/ MIPI
High Light

6.6 Inch TFT lcd module

,

4098×2560 resolution TFT lcd module

,

50pins LCD TFT Display

Leave a Message
Product Description
ESHX2011A0   is 6.6 inch  TFT display module ,resolution is  4098×2560   and brightness is 350c/d and interface is 50pins/mipi ,apply for 3D printer

A:Product Parameter
part No: ESHX2011A0
Size 尺寸 6.6 inches
Resolution 分辨率 4098×2560 pixels
Active Area 显示区域 143.43 × 89.6 mm
Outline dimension 外观尺寸 154.36 × 99.1 mm
Driving IC ST7789V
Interface 接口 50pins MIPI
View Angle 可视角度 IPS ,free
Operating temperature 工作温度 0~+70 °C
Storage temperature 储存温度 -10 ... +80 °C
application apply for 3D printer

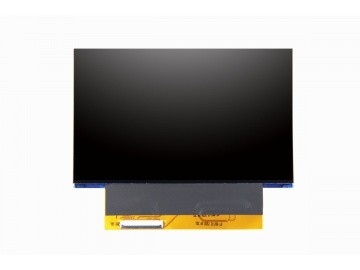

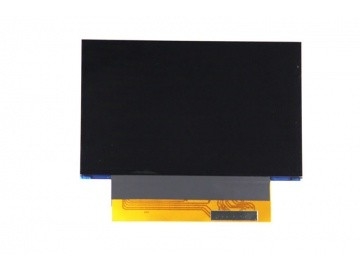

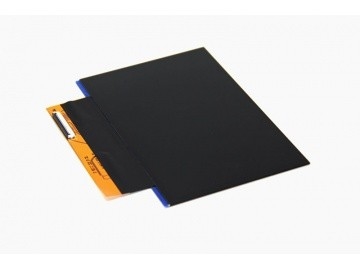

B: Product Picture


6.6 Inch TFT LCD Display Module,  4098×2560 Resolution,  50pins For 3D Printer 06.6 Inch TFT LCD Display Module,  4098×2560 Resolution,  50pins For 3D Printer 16.6 Inch TFT LCD Display Module,  4098×2560 Resolution,  50pins For 3D Printer 2


C:Drawing



....................................................

D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


6.6 Inch TFT LCD Display Module,  4098×2560 Resolution,  50pins For 3D Printer 3



TFT structure  as below

6.6 Inch TFT LCD Display Module,  4098×2560 Resolution,  50pins For 3D Printer 4




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
