1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface

  • 1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface
  • 1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface
  • 1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface
  • 1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface
  • 1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX01501C03
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 1.5" Resolution 480×240
Brightness 350cd/m2 View Angle Free View Angle
Interface 4SPI,40PINS
Highlight

1.5 Inch TFT LCD Display Module

,

480X240 TFT Display Module

,

350nits TFT Module
Leave a Message
Product Description
ESHX01501C03  is 1.5 inch  TFT display module ,resolution is  480×240  and brightness is 350c/d and interface is 40pins/4 wire SPI,Driving IC is OTA5182A

A: Product Parameter
part No: ESHX01501C03
Size 尺寸 1.5 inches
Resolution 分辨率 480×240 pixels
Active Area 显示区域 29.76× 22.32 mm
Outline dimension 外观尺寸 37.1 × 32.7 mm
Driving IC ST7789V
Interface 接口 4SPI,40PINS
View Angle 可视角度 IPS ,free
Brightness 亮度 350 Nits
Operating temperature 工作温度 -10~+60 °C
Storage temperature 储存温度 -30 ... +80 °C



B: Product Picture

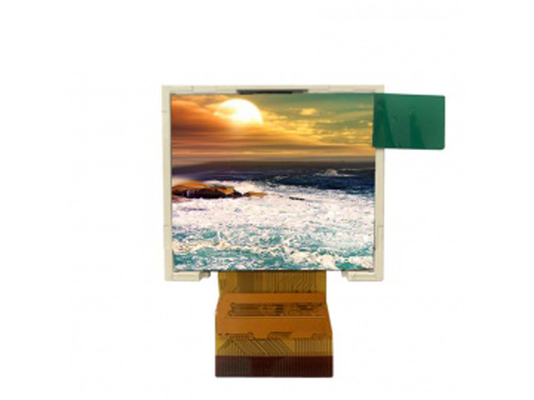

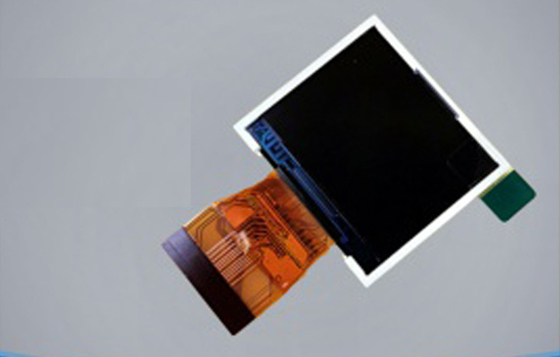

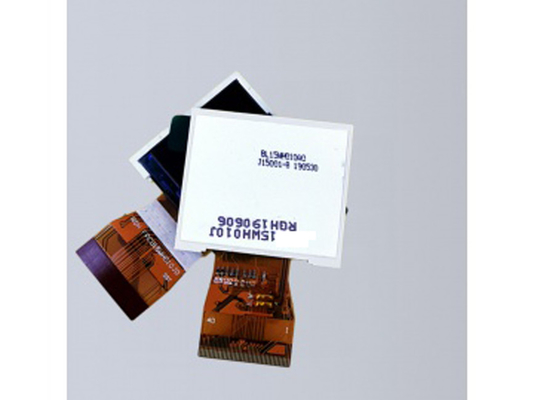

1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface 01.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface 11.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface 2

C:Drawing



1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface 3

D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface 4



TFT structure  as below

1.5 Inch TFT LCD Display Module, 480X240 Resolution, 350nits 10 Pin 4SPI Interface 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut



Tags:

LCD TFT Display

tft lcd display module

tft display lcd
