1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR

  • 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR
  • 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR
  • 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR
  • 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX019B0M-EH0
Document ESHX019B0M-EH0 spec.pdf
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 1.89" Resolution 1600*1200
Brightness 1000cd/m2 View Angle Free View Angle
Interface Mipi / 50pin
Highlight

1.89 Inch LCD TFT Display

,

1600*1200 resolution TFT LCD Display

,

MIPI interface LCD TFT Display Module
Leave a Message
Product Description
1.89 Inch TFT Color Display, 1600×1200 Resolution, 1000nits, 50 Pin MIPI Interface for VR
The ESHX019B0M-EH0 is a 1.9 inch TFT display module featuring high resolution (1600×1200) and high brightness (1000cd/m²). It utilizes a 50-pin MIPI interface and ADS display mode, making it ideal for VR applications.
Product Parameters
Part Number ESHX019B0M-EH0
Size 1.9 inch
Resolution 1600×1200
Active Area 38.4×28.8 mm

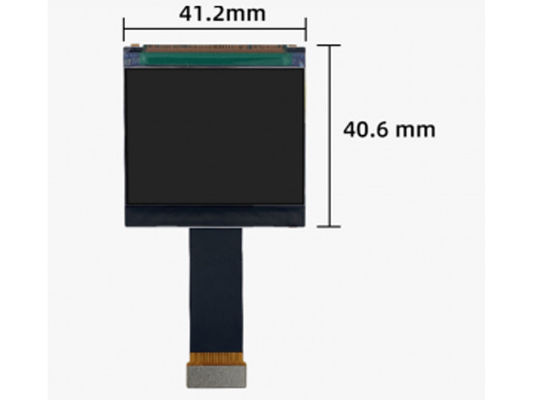

Outline Dimension 41.2×40.6×1.72 mm
Color Depth 16.7 million colors
Display Mode ADS
Surface Treatment HC, ≥3H
Interface 50 pin MIPI
View Angle 25/25/35/35
Brightness 1000 cd/m²
Operating Temperature -10°C to +55°C
Storage Temperature -30°C to +70°C
Contrast Ratio 550:1

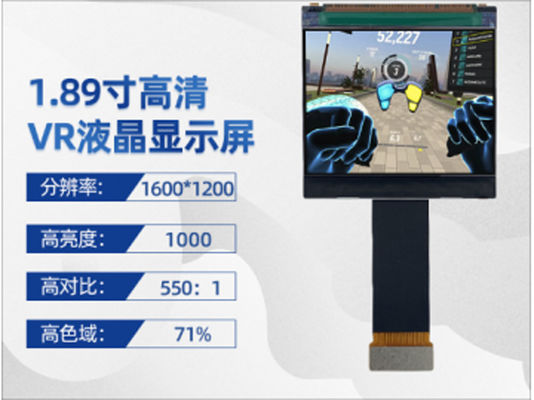

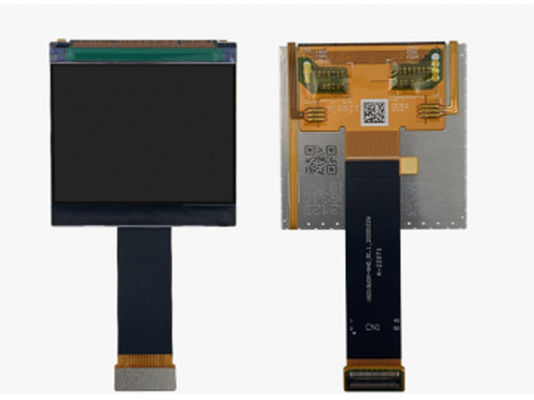

Product Images
1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR 0 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR 1 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR 2
Technical Drawings
1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR 3
TFT Product Knowledge
1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR 4 1.89 Inch TFT color Display ， 1600*1200 Resolution , 1000nits 50 Pin MIPI Interface applied for VR 5
Company Information
Huaxin Technology (Enshi) Co., LTD
  • Factory located in Hubei Enshi (cost-effective location)
  • Established: 2009
  • Specializes in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED products
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Company Advantages
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineers with 20+ years experience in LCD field
  • In-house design capability for customized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand pieces/Day
Backlight Production 100 200 300 500 500 Unit: Thousand pieces/Day
OLED Production 10 20 30 40 50 Unit: Thousand pieces/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliances
TFT Display Characteristics
  • Image Quality: Excellent with high resolution, sharpness, and color accuracy
  • Response Time: Fast switching of pixels
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: More efficient than other display technologies
  • Size and Flexibility: Available in various sizes from small to large panels
  • Backlighting: Typically uses LED backlighting
  • Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
  • Viewing Angles: Some models may have limited optimal viewing angles
  • Contrast Ratio: May be limited compared to other technologies
  • Power Consumption: Backlighting can increase power usage
  • Response Time: Potential for motion blur in fast-moving images
  • Flexibility: Less flexible than some newer display technologies
  • Color Gamut: May have limitations in color range
