5.2 Inch TFT color display , 1080x1920 Resolution, 300nits Driving IC FT8716A
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX052FHSM0-004 |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | Lcd Display | Name | TFT Display |
|---|---|---|---|
| Size | 5.2" | Resolution | 1080x1920 |
| Brightness | 300cd/m2 | View Angle | Free View Angle |
| Interface | Mipi / 40pin | ||
| Highlight | 1080x1920 TFT LCD Module,5.2 Inch TFT LCD Display Module,300nits LCD TFT Module |
||
Product Description
5.2 Inch TFT Color Display with 1080x1920 Resolution and FT8716A Driver IC
The ESHX052FHSM0-004 is a 5.2-inch square TFT display module with incell touch panel, featuring 1080x1920 resolution, 300cd/m² brightness, 40-pin MIPI interface, and FT8716A driver IC.
Product Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Model name | ESHX052FHSM0-004 | -- |
| Display size | 5.2" TFT display | inch |
| Resolution | 1080x1920 | dots |
| Viewing Direction | ALL | o'clock |
| Module size | 66.8x122.4x1.35 | mm |
| Active Area | 64.8x115.2 | mm |
| Luminance | 300 | cd/m² |
| Interface | Mipi / 40pin | -- |
| With/Without TP | incell | -- |
| LCM Driver IC | FT8716A | -- |
| Input Voltage | 3.3 | V |
| Operation Temperature | -20~+70 | ℃ |
| Storage Temperature | -30~+80 | ℃ |

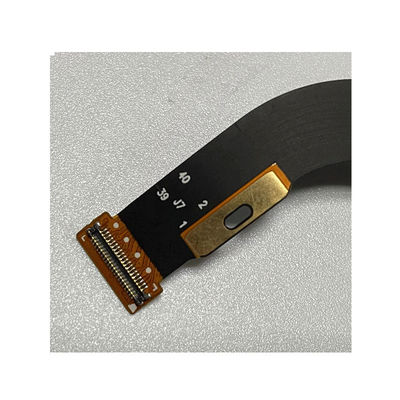

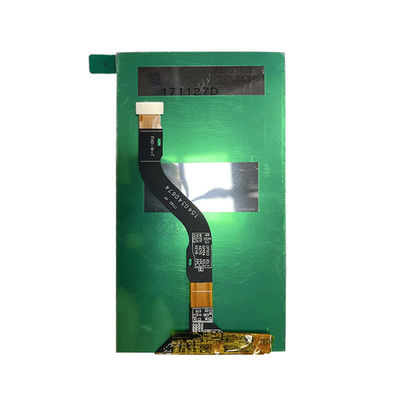

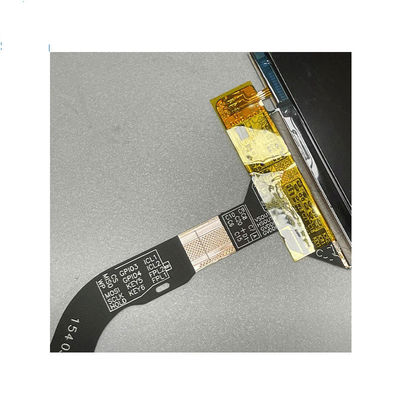

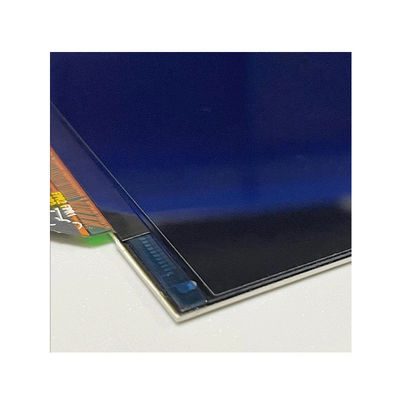

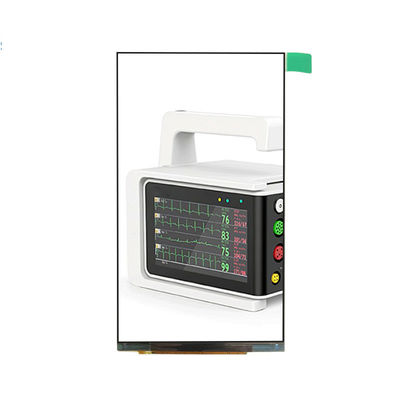

Product Images
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
- Factory located in Hubei Enshi (cost-effective location)
- Advanced equipment ensuring stable quality
- Automated processes for efficiency and consistency
- Expert engineering team with 20+ years experience
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Details
- Founded: 2009
- Location: Hubei, Enshi
- Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD types: VA, TN, HTN, STN, FSTN, CSTN series
- LCM types: COB, TBA, COG, TP, LED backlight series
- Registered capital: 20 million
- Employees: 500+
- R&D staff: 10%
- QC staff: 15%
Production Capacity
| Product | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand/Day |
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
TFT Display Advantages
- Image Quality: High resolution, sharpness, and color accuracy
- Response Time: Fast pixel switching capability
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: Lower power consumption than alternatives
- Size Flexibility: Available in various sizes for different applications
- Backlighting: LED backlight system for illumination
- Versatility: Suitable for diverse applications
TFT Display Considerations
- Viewing Angles: Some limitations at extreme angles
- Contrast Ratio: May be limited compared to other technologies
- Power Consumption: Backlighting increases power needs
- Motion Blur: Potential for blur in fast-moving images
- Flexibility: Limited physical flexibility
- Color Gamut: May not cover full color spectrum
