3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S

  • 3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S
  • 3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S
  • 3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S
  • 3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S
  • 3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX040WVSM5-001-TP
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 3.95" Resolution 480*480
Brightness 700cd/m2 View Angle Free View Angle
Interface Mipi / 20pin
Highlight

3.95 Inch TFT Display Module

,

700nits TFT Display Module

,

480x480 LCD TFT Display
Leave a Message
Product Description
ESHX040WVSM5-001-TP   is 3.95  inch square TFT display module with touch panel  , resolution is 480x480 and brightness is 700c/d and interface is 20pins/MIPI,  lcd display driver IC is ST7701S


A: Product Parameter

item Specification Unit
Model name ESHX040WVSM5-001-TP
Display size 3.95 inch
Resolution 480*480 dots
Viewing Direction ALL o'clock
Module size 84.05(H) x 84.05(V) x 4.15(D) mm
Active Area 71.86(H) x 70.18(V) mm
Luminance 700 cd/m2
Interface Mipi / 20pin --
With /Without TP with C-TP --
LCM Driver IC ST7701S --
CTP Controller GT911 --
Input Voltage 3.3 V
Operation Temperature -20~+70 ℃
Storage Temperature -30~+80 ℃



B:Product Picture

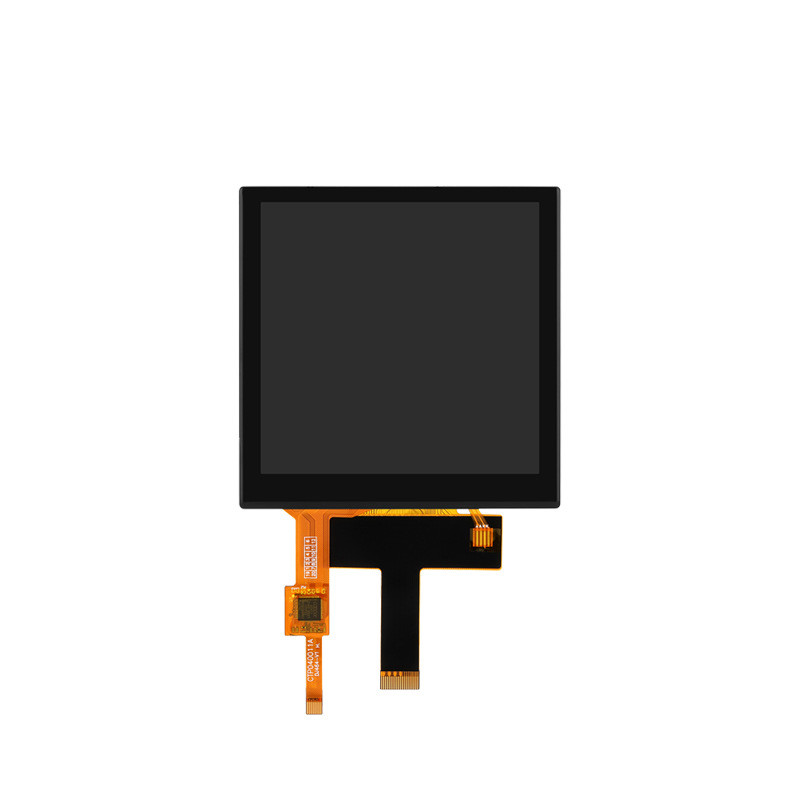

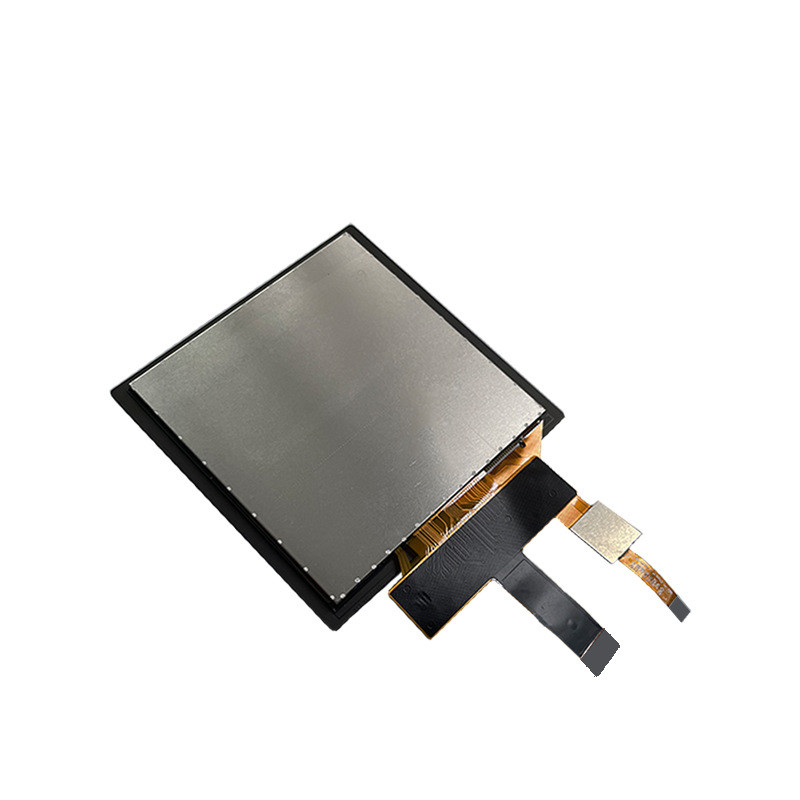

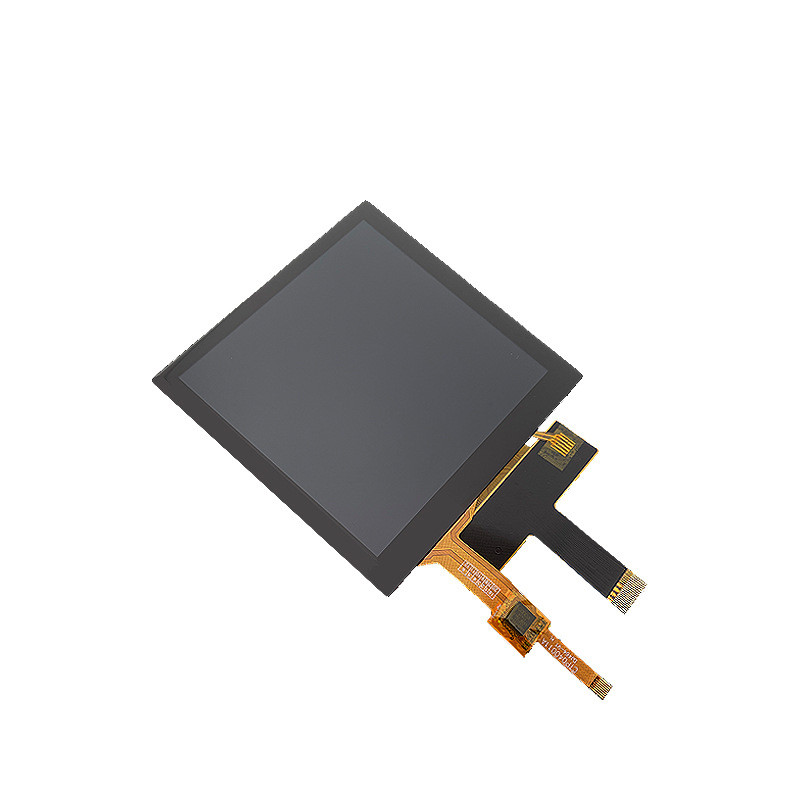

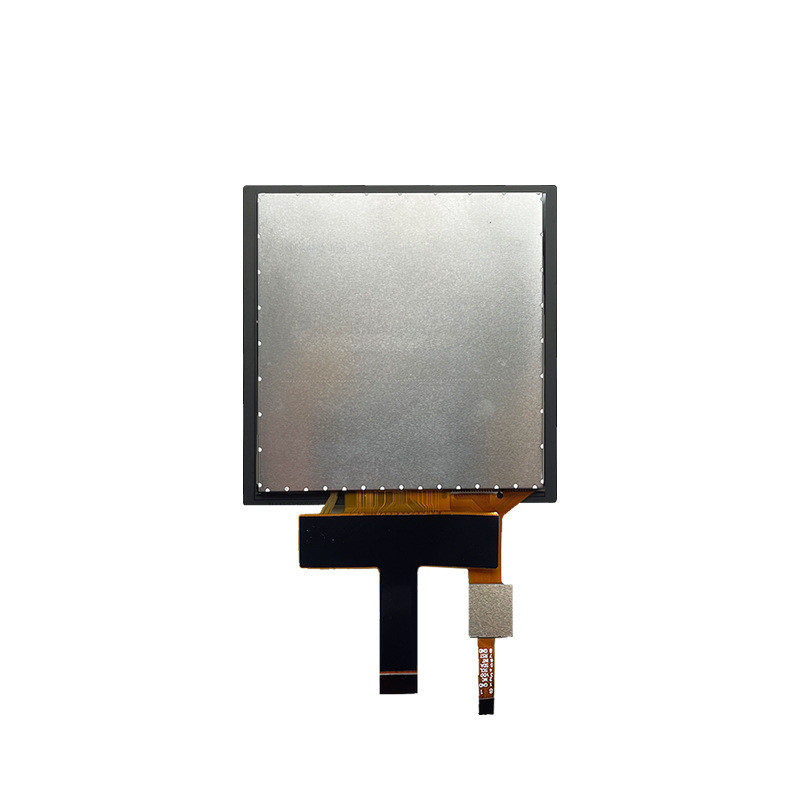

3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 03.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 13.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 23.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 3

C: Drawing



3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 4



D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 5



TFT structure  as below

3.95 Inch TFT LCD Display Module , 480x480 Resolution , 700nits Driving IC ST7701S 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut

Tags:

LCD TFT Display

tft lcd display module

tft display lcd
