10.1 Inch TFT LCD Display Module, With PCBA And Touch Panel, 24 BIT RGB Interface1280X800
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX101WX001B-WCT |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Lcd Display | Name | TFT LCD Display+RTP +PCB |
|---|---|---|---|
| Size | 10.1" | Resolution | 1280x800 |
| Brightness | 300cd/m2 | View Angle | Free |
| Interface | 24 Bit RGB | ||
| High Light | 10.1 Inch TFT Display Module,TFT LCD Display Module With PCBA,TFT LCD Display Module 1280X800 |
||
Product Description
ESHX101WX001B-WCT is 10.1 inch a color active matrix TFT LCD display with touch panel and PCBA ,1280X800 resolution and 24 bit RGB interface ,300c/d and free view angle
for more details, you can download datasheet from this link ESHX101WX001B-WCT_SPEC_V0.0.pdf
A:Product Parameter
| Part No: | ESHX101WX001B-WCT |
| Panel Size | 10.1 inch TFT LCD Display+CTP +PCB |
| LCD Type | IPS |
| Module Size(mm) | 229.46×149.10×4.85 |
| Display Area(mm) | 216.96×135.60 |
| Number of Dots | 1280X800 |
| View angle | FREE |
| Interface Pins | 24 bit RGB |
| Driving IC | / |
| Luminance | 300 c/d |
| With /Without TSP | with CTP |

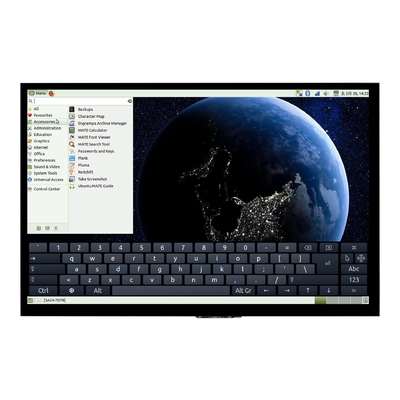

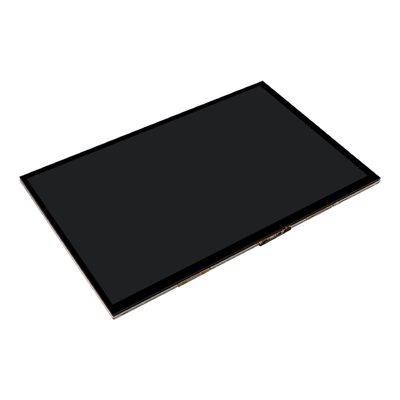

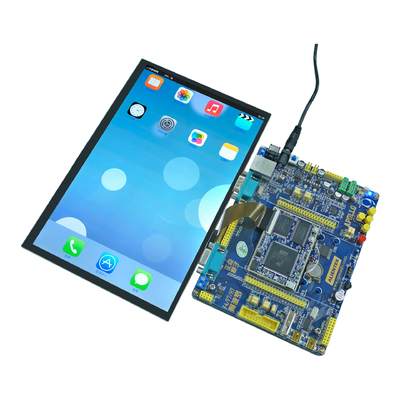

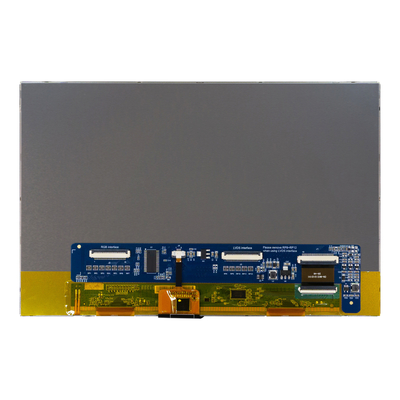

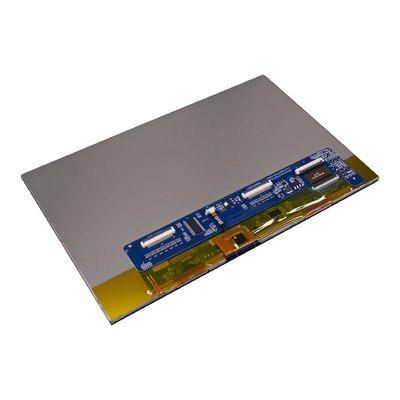

B:Product Picture
C:Drawing
D:TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
