Customized 7 Inch Capacitive Touch Panel GT911 800*480/1024*600 6 PINS I2C Interface
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO13485/ISO9001/IATF16949 |
| Model Number | ESHX7210A-V1 |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | Capacitive Touch Panel | Name | Touch Screen |
|---|---|---|---|
| Size | 7 " | Resolution | 1024x600 Or 800x480 |
| Driving IC | GT911 | View Angle | Free |
| Interface | 6 PINS I2C | ||
| High Light | 7 Inch Capacitive Touch Panel,Capacitive 6PINS Touch Panel,I2C Interface capacitive touch screen panel |
||
Product Description
ESHX7210A-V1 is 7 inch capacitive touch panel ,GT911, ten point touch, supporting 800*480/1024*600 resolution,6 PINS I2C interface
A. Product Parameter
| Part NO. | ESHX7210A-V1 |
| Panel size | 7 inch capacitive touch panel |
| resolution | 800*480/1024*600 |
| driving IC | GT911 |
| AA size | 153.3x86.9mm |
| outline size | 163.8x98.5mm |
| Interface | 6 PINS I2C |
| Touch points | 10 points |
| Voltage | 2.8v-3.3v |
| transmittance | >=85% |

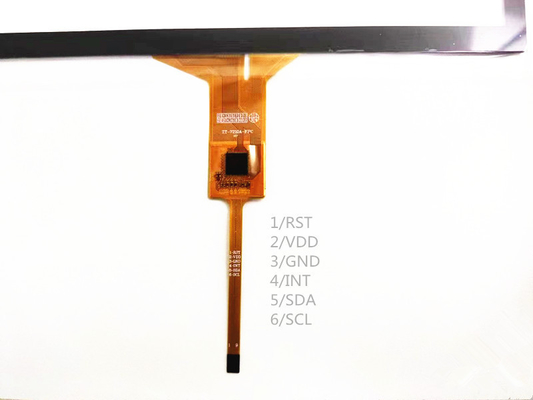

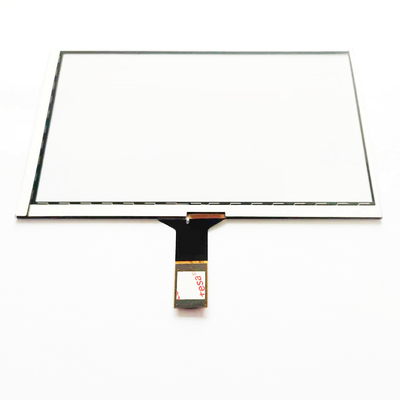

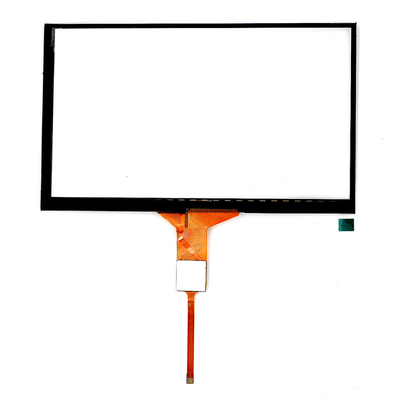

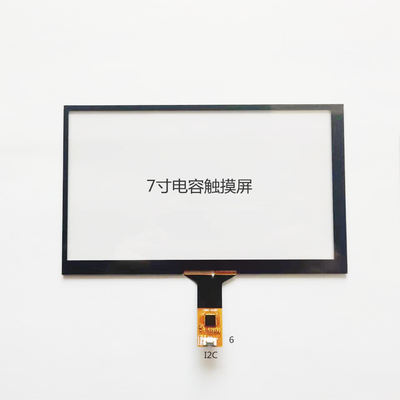

B.Product Picture
C. Drawing
D. TFT product knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: company information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/ ISO13485/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production capacity
| Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
| LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
| LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
| Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
| OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
||
G: Product application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: FAQ
Q: When can i get the quotation?
A: We usually quote within 12 hours after we got your inquiry.
If it is very urgent, please call us or contact us via email, Skype or WhatsApp.
Q: What is your warranty?
A: We provide one year warranty.
Q: May i buy samples from you?
A: Yes! You are welcome to place sample order to test our superior quality and service.
Q: How to place bulk order?
A: 1) Tell us model number, quantity, size and other special requirements.
2) Proforma Invoice will be made and sent to you for approval
3) Production will be arranged once get your payment or deposit.
4) Goods will be delivered as stated on the Proforma Invoice.
Q: How will you deliver my goods to me?
A: We provide as many shipping options as possible, such as DHL, UPS, FEDEX, TNT AND EMS to enable our customers get their goods rapidly at door. We also ship by economick method such as air cargo and sea cargo, direct line, air mail according to customers' request.
Q: What about the quality of your product?
A: We provide unrivaled quality: very rigorous testing process for incoming quality control, input process quality control, and final quanltiy control for every piece. We follow QC test procedure, and do 100% FQC to ensure your satisfication.
Q: Can you provide ODM service?
A: Yes! We can provide professional ODM service.
Q: What payment method do you accept?
A: T/T(bank transfer), L/C and paypal
Q: Do you have any after-sales service?
A: Yes! Our productt has professional after-sales service dept. Follow up R.M.A. Items service and upload product fireware and app for you download.
If you have any technical questions with the goods, please feel freely to contact our technical support dept, or our sales directly.
