2.4 Inch 480*640 TFT Display LCD , With All View Angle SPI Interface, Driving IC ST7701

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX024480640-IPS
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 2.4 " Resolution 480 (RGB) × 640
Brightness 250cd/m2 View Angle Free
Interface SPI
Highlight

480*640 TFT Display LCD

,

TFT SPI interface Display LCD

,

2.4 Inch TFT LCD Display

Leave a Message
Product Description

ESHX024480640-IPS is a 2.4 inch colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a colour TFT-LCD panel, driver IC, FPC, and a back light unit. The module display area contains 480 x 640 pixels. This product accords with RoHS environmental criterion.



A:Product Parameter

Part No: ESHX024480640-IPS UNIT
LCD Type TFT/Transmissive/Normally Black
Size 2.4 Inch
Viewing Direction All O'clock
Display Mode Normally Black
LCD (W x H x D) 42.72 x 60.26 x 2.30 mm²
Active Area (W x H) 36.72 x 48.96 mm²
Dot Pitch (W × H) 0.129 x 0.129 um²
Number of Dots (Pixels) 480 (RGB) × 640
Interface Type SPI
Color Depth 16.7M
Pixel Arrangement RGB Vertical Stripe
Driver IC ST7701
Brightness 250 (typical) cd/m²
Backlight Type 4 LEDs
Input Voltage 2.8 (typical) V




B:Product Picture

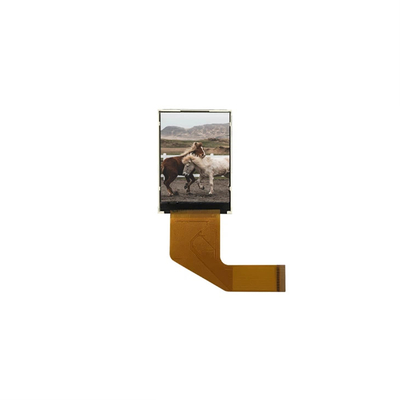

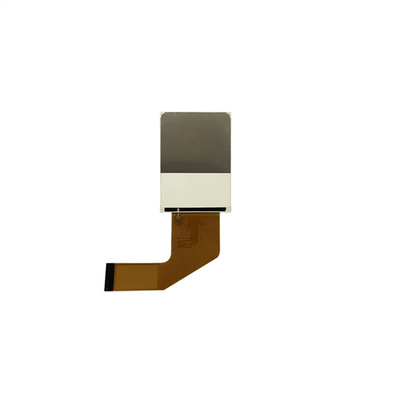

2.4 Inch 480*640 TFT Display LCD , With All View Angle SPI Interface,  Driving IC ST7701 02.4 Inch 480*640 TFT Display LCD , With All View Angle SPI Interface,  Driving IC ST7701 1


C:Drawing

...............................................................................................................

D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


2.4 Inch 480*640 TFT Display LCD , With All View Angle SPI Interface,  Driving IC ST7701 2



TFT structure  as below

2.4 Inch 480*640 TFT Display LCD , With All View Angle SPI Interface,  Driving IC ST7701 3
