1.4 Inch Colour Active Matrix LCD TFT Module, 320 X 320 Pixels, SPI Interface ST7796 Driving

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX014320320-IPS
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 1.4 " Resolution 320X320
Brightness 250cd/m2 View Angle Free
Interface SPI
High Light

Colour Active Matrix LCD TFT Module

,

1.4 Inch LCD TFT Module

,

ST7796 TFT LCD Module

Leave a Message
Product Description
ESHX014320320-IPS is is a 1.4 inch colour active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). It is composed of a colour TFT-LCD panel, driver IC, FPC, and a back light unit. The module display area contains 320 x 320 pixels. This product accords with RoHS environmental criterion.


A:Product Parameter

Part NO. ESHX014320320-IPS UNIT
LCD Type TFT/Transmissive/Normally Black
Size 1.4 Inch
Viewing Direction All O'clock
Display Mode Normally Black
LCD (W x H x D) 27.40 x 30.23 x 2.30 mm²
Active Area (W x H) 25.70 x 25.70 mm²
Dot Pitch (W × H) 0.078 x 0.078 um²
Number of Dots (Pixels) 320 (RGB) × 320
Interface Type SPI
Color Depth 16.7M
Pixel Arrangement RGB Vertical Stripe
Driver IC ST7796
Brightness 250 (typical) cd/m²
Backlight Type 3 LEDs
Input Voltage 2.8 (typical) V

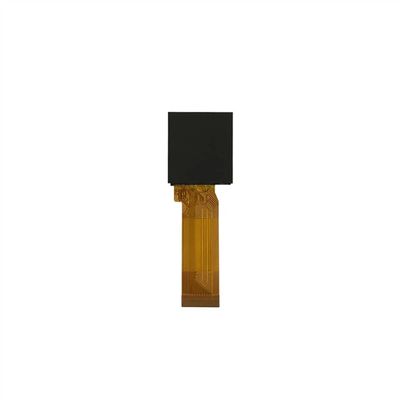

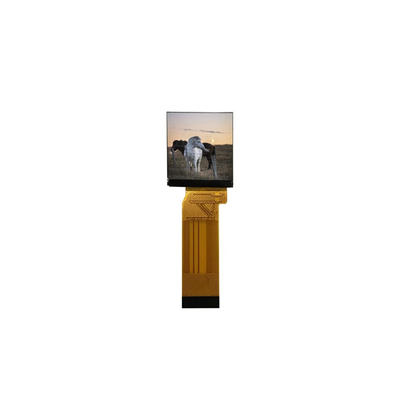

B:Product Picture

1.4 Inch Colour Active Matrix LCD TFT Module,  320 X 320 Pixels,  SPI Interface ST7796 Driving 01.4 Inch Colour Active Matrix LCD TFT Module,  320 X 320 Pixels,  SPI Interface ST7796 Driving 1


C:Drawing


........................................................................

D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1.4 Inch Colour Active Matrix LCD TFT Module,  320 X 320 Pixels,  SPI Interface ST7796 Driving 2



TFT structure  as below

1.4 Inch Colour Active Matrix LCD TFT Module,  320 X 320 Pixels,  SPI Interface ST7796 Driving 3
