1304x984 E-Ink Colored Epaper Display, 12.48inch Black White Red Epd
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHXG1248RNU790F1 |
| Minimum Order Quantity | 1000pcs |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | E-ink Epaper Display | Name | 12.48 " E-PAPER |
|---|---|---|---|
| Size | 12.48 " | Resolution | 1304(H)×984(V) |
| Display Color | Black/white /red | Interface | SPI |
| Highlight | E-Ink Colored Epaper Display,1304 x 984 Epaper Display,12.48 inch Epaper Epd Display |
||
Product Description
ESHXG1248RNU790F1 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black and red full display capabilities. The 12.48 inch active area contains 984×1304 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.
A:Product Parameter
| Part No: | ESHXG1248RNU790F1 |
| Size | 12.48 inch |
| Display modes | Black,White,red |
| Operation Temp. | 0-40℃ |
| Resolution(mm) | 1304(H)×984(V) |
| DPI | 131 |
| Active Area | 252.98×190.90 |
| Outline size | 261.5(H)×211.00 (V) ×1.20(D) |
| working voltage | -0.3 to +6.0 |
| Typical peak current | 2.2~3.7v |
| Typical operating current | 3.0V |
| Grey level | 2Grey Level |

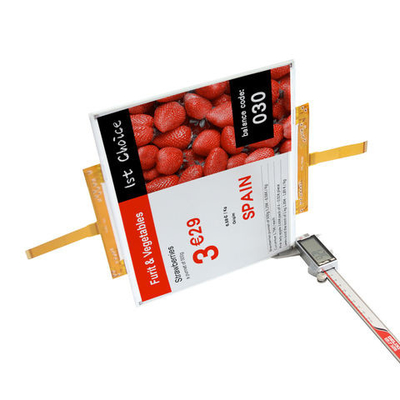

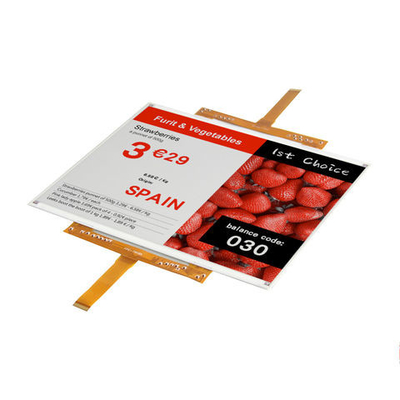

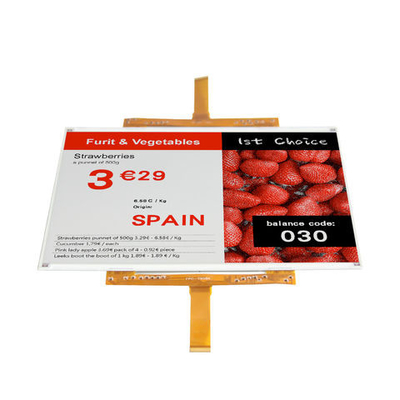

B: Product Picture
C: Drawing
..............................................................................
D: E-paper Product Knowledge
- E- paper Advantages:
- paper-like reading experience
- ultra wide view angle
- ultra low power consumption
- ultra thin
- eye protection
- environmental protection
- without backlight
E-paper Disadvantages
- suitable to lower temperature
- size is limited in the market
- color is limited and can't make full color
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
| Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
| LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
| LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
| Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
| OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
||
G: Product Application
1.supermarket retail lable
2.e-book reading
3.financial field
4. smart healthcare
5. smart transportation and smart home
H: E-paper Display Characteristics
1. Reflective Display
2. Bi-stable
3. Low Power Consumption
4. High Contrast and Readability
5. Flexible and Lightweight
6. Limited Color Capabilities
7. Slow Refresh Rate
I:Are there any drawbacks to using e-paper displays
1.Limited Color Capabilities
2.Slow Refresh Rate:
3.Limited Viewing Angles:
4.Limited Brightness and Contrast
5.Slower Image Updates
6.Limited Availability of Larger Sizes
7.Susceptibility to Environmental Factors
