13.3 Inch E-Paper EPD Monitor Display, 960*680 For Red Black White Big E-Ink Display

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHXG1330RWS770F0
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology E-ink Epaper Display Name 13.3 " E-PAPER
Size 13.3" Resolution 680x960
Display Color Black/white /red Interface SPI
High Light

E-Paper EPD Monitor Display

,

13.3 Inch E-Paper Display

,

960*680 EPD Monitor Display

Leave a Message
Product Description



ESHXG1330RWS770F0 is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display image at 1-bit white, black and red full display capabilities. The 13.3inch active area contains 960×680 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM,LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.



A: Product Parameter

Part No: ESHXG1330RWS770F0
Szie 13.3 inch
Display modes Black,White,Red
Operation Temp. 0-40℃
Resolution(mm) 680(H)×960V)
DPI 88
Active Area 275.52×195.16
Outline size 286.32(H)×212.26 (V) ×1.20(D)
working voltage -0.5 to +6.0
Typical peak current 2.2~3.7v
Typical operating current 3.0V
Grey level 2Grey Level

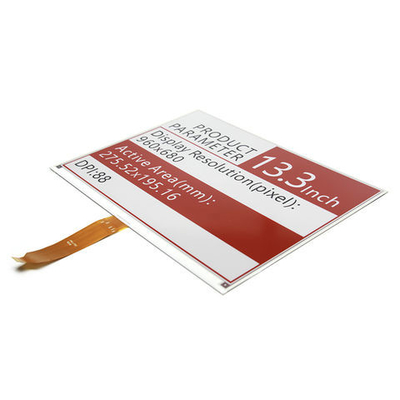

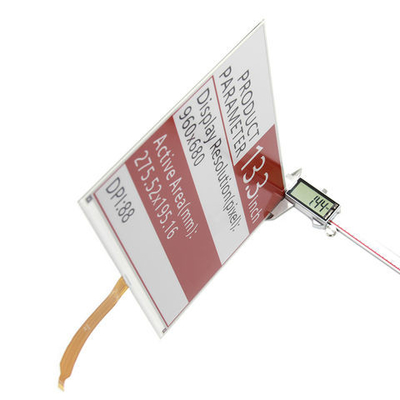

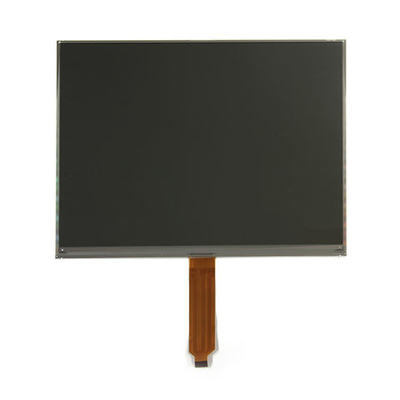

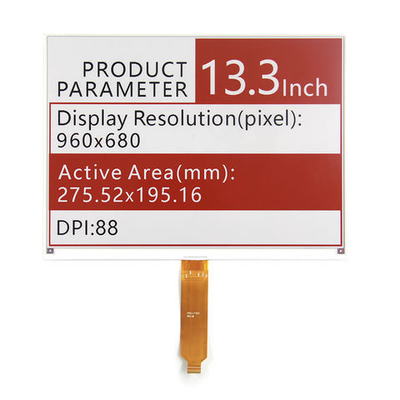

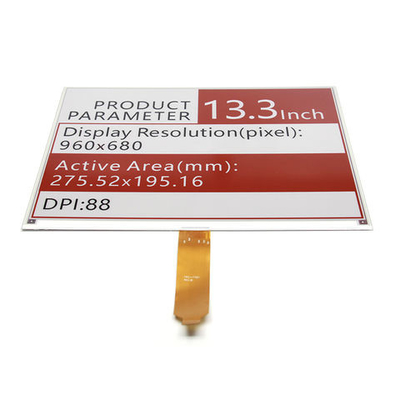

B:Product Picture

13.3 Inch E-Paper EPD Monitor Display,  960*680 For Red Black White Big E-Ink Display 013.3 Inch E-Paper EPD Monitor Display,  960*680 For Red Black White Big E-Ink Display 113.3 Inch E-Paper EPD Monitor Display,  960*680 For Red Black White Big E-Ink Display 213.3 Inch E-Paper EPD Monitor Display,  960*680 For Red Black White Big E-Ink Display 313.3 Inch E-Paper EPD Monitor Display,  960*680 For Red Black White Big E-Ink Display 4





C: Drawing



13.3 Inch E-Paper EPD Monitor Display,  960*680 For Red Black White Big E-Ink Display 5





D: E-paper Product Knowledge

  • E- paper  Advantages:
  • paper-like reading experience
  • ultra wide view angle
  • ultra low power consumption
  • ultra thin
  • eye protection
  • environmental protection
  • without backlight

E-paper  Disadvantages

  • suitable to lower temperature
  • size is limited in the market
  • color is limited and can't make full color

E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1.supermarket retail lable

2.e-book reading

3.financial field

4. smart healthcare

5. smart transportation and smart home



H: E-paper display Characteristics



1. Reflective Display

2. Bi-stable

3. Low Power Consumption

4. High Contrast and Readability

5. Flexible and Lightweight

6. Limited Color Capabilities

7. Slow Refresh Rate



I:Are there any drawbacks to using e-paper displays



1.Limited Color Capabilities

2.Slow Refresh Rate:

3.Limited Viewing Angles:

4.Limited Brightness and Contrast

5.Slower Image Updates

6.Limited Availability of Larger Sizes

7.Susceptibility to Environmental Factors
