4.3 Inch TFT Display Module With PCBA, 800X480 Resolution, HDMI Interface 400c/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX43WV005
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display With PCBA
Size 4.3 " Resolution 800x480
Brightness 400cd/m2 View Angle Free View Angle
Interface HDMI
Highlight

4.3 Inch TFT Display Module

,

TFT Display Module With PCBA

,

800X480 TFT PCBA Display Module

Leave a Message
Product Description

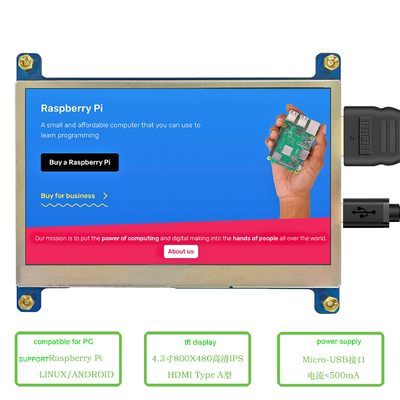

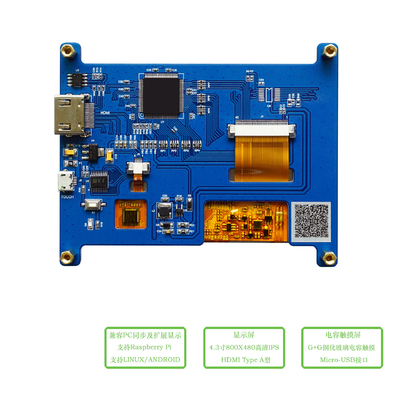

ESHX43WV005  is 4.3 inch a color active matrix TFT LCD display with PCBA,800x480 resolution and HDMI interface ,400c/d with touch panel, supporting  Raspberry PI/linux/Android



A: Product Parameter

Part No: ESHX43WV005
Panel Size 4.3 inch TFT with PCBA
LCD Type IPS
Module Size(mm) 105.8x85.09mm
Display Area(mm) 95.04x53.86mm
Number of Dots 800x480
View angle free
Interface Pins HDMI interface
Luminance 400CD

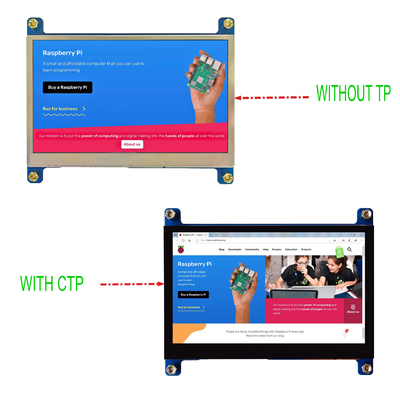

With /Without TSP five point touch

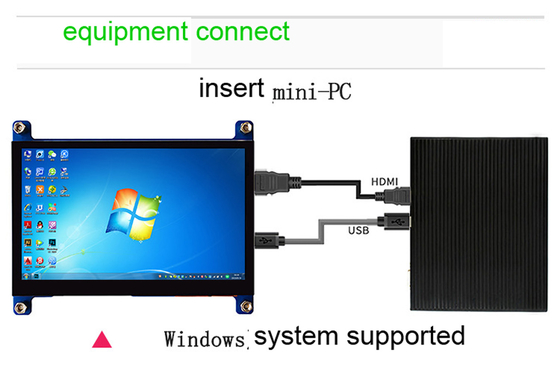

Remark support Raspberry PI/linux/Android



B:Product Picture

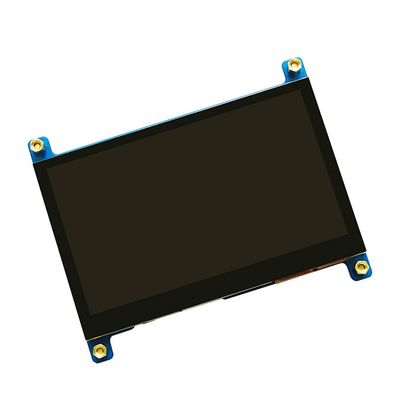

4.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 04.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 14.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 24.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 34.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 4


C:Drawing

4.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 5


D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


4.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 6



TFT structure  as below

4.3  Inch TFT Display Module With PCBA,  800X480 Resolution,  HDMI Interface 400c/D 7
