4 Inch TFT LCD Display Module, 1280x720 Resolution, 30 Pins LVDS Interface Brightness 1100C/D

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX040HDI27P30
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 4" Resolution 1280x720
Brightness 1100 Cd/m2 View Angle Free View Angle
Interface LVDS 30PIN
Highlight

4 Inch TFT LCD Display Module

,

30 Pins LVDS TFT Display Module

,

1280x720 TFT Display Module

Leave a Message
Product Description

ESHX040HDI27P30  is Normally black Transmissive 4 inch  TFT display  module, 1280x720  Resolution, 30 pins lvds  interface,Brightness is 1100 C/D

for more details, pls kindly download complete specificationESHX040HDI27P30 A10 spec.pdf



A:Product Parameter

Part No: ESHX040HDI27P30 unit
Size 尺寸 4 inches​ ​
Resolution 分辨率 1280*720 pixels
Active Area 显示区域 87.94*49.46 mm
Outline dimension 外观尺寸 93.08*58.76*2.71 mm
Pixel pitch 点距 0.0229*0.0687 mm
Color Depth 颜色 16.7M
Display Mode 显示模式 Normally black Transmissive
Surface treatment 表面处理 TBD
Interface 接口 LVDS 30PIN
View Angle 可视角度 80/80/80/80
Brightness 亮度 1100 Nits
Contrast ratio 对比度 1000
Response time 响应时间 30 ms
Operating temperature 工作温度 -20 ... +70 °C
Storage temperature 储存温度 -30 ... +80 °C



B:Product Picture

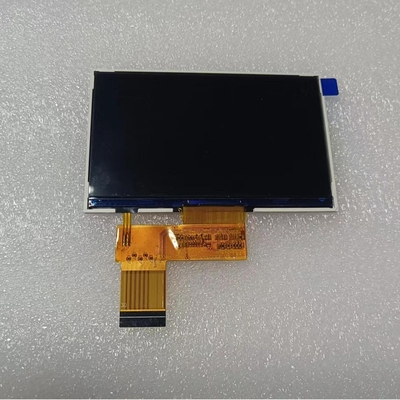

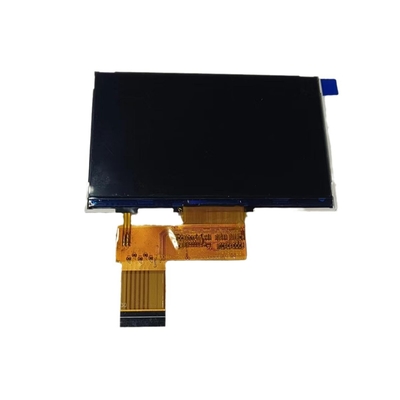

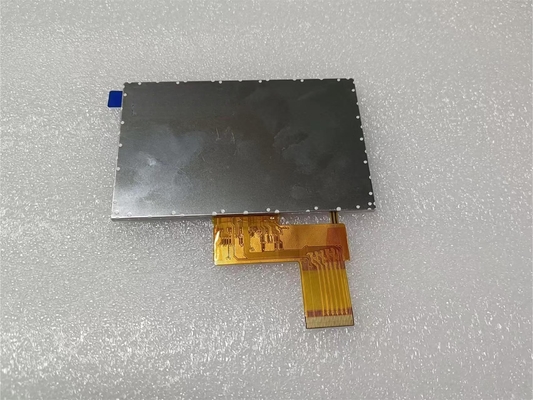

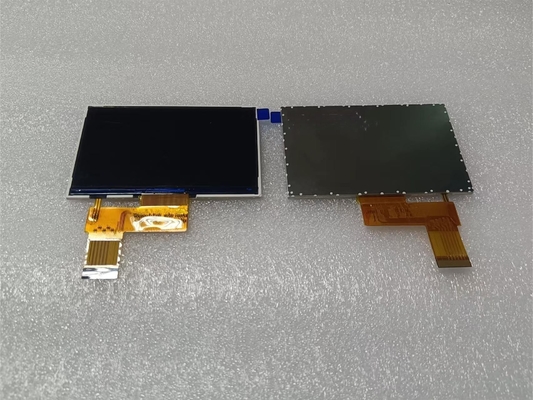

4 Inch TFT LCD Display Module, 1280x720 Resolution,  30 Pins LVDS Interface Brightness 1100C/D 04 Inch TFT LCD Display Module, 1280x720 Resolution,  30 Pins LVDS Interface Brightness 1100C/D 14 Inch TFT LCD Display Module, 1280x720 Resolution,  30 Pins LVDS Interface Brightness 1100C/D 2
