Product Details
Display Technology Lcd Display Name TFT Display
Size 8" Resolution 1920*1200
Brightness 1000 Cd/m2 Operating Temp -30~85
View Angle Free Interface LVDS 45Pins
High Light

TFT 8 Inch Display Module

,

LVDS 45PIN TFT Display Module

,

TFT 1000c/D Display Module

Leave a Message
Product Description

ESHX080WUBWT01  is 8 inch TFT display  module, 1920*1200  Resolution, 45 pins lvds  interface,Brightness is 1000 C/D,operating temperature -30~85 and storage temperature is -30~85

for more details, you can download datasheet from this link ESHX080WUBWT01 spec.pdf



A:Product Parameter

Part No: ESHX080WUBWT01 unit
Size 8 inches​ ​
Resolution 1920*1200 pixels
Active Area 172.224*107.64 mm
Outline dimension 181.7*119.8*5.5 mm
Pixel pitch 0.0299*0.0897 mm
Color Depth 16.7 M colors
Display Mode Normally black Transmissive
Surface treatment TBD
Interface LVDS 45PIN
View Angle 85/85/85/85
Brightness Min1000 Nits
Contrast ratio Typ1200
Response time 30 ms
Operating temperature -30 ... +85 °C
Storage temperature -30 ... +85 °C



B:Product Picture

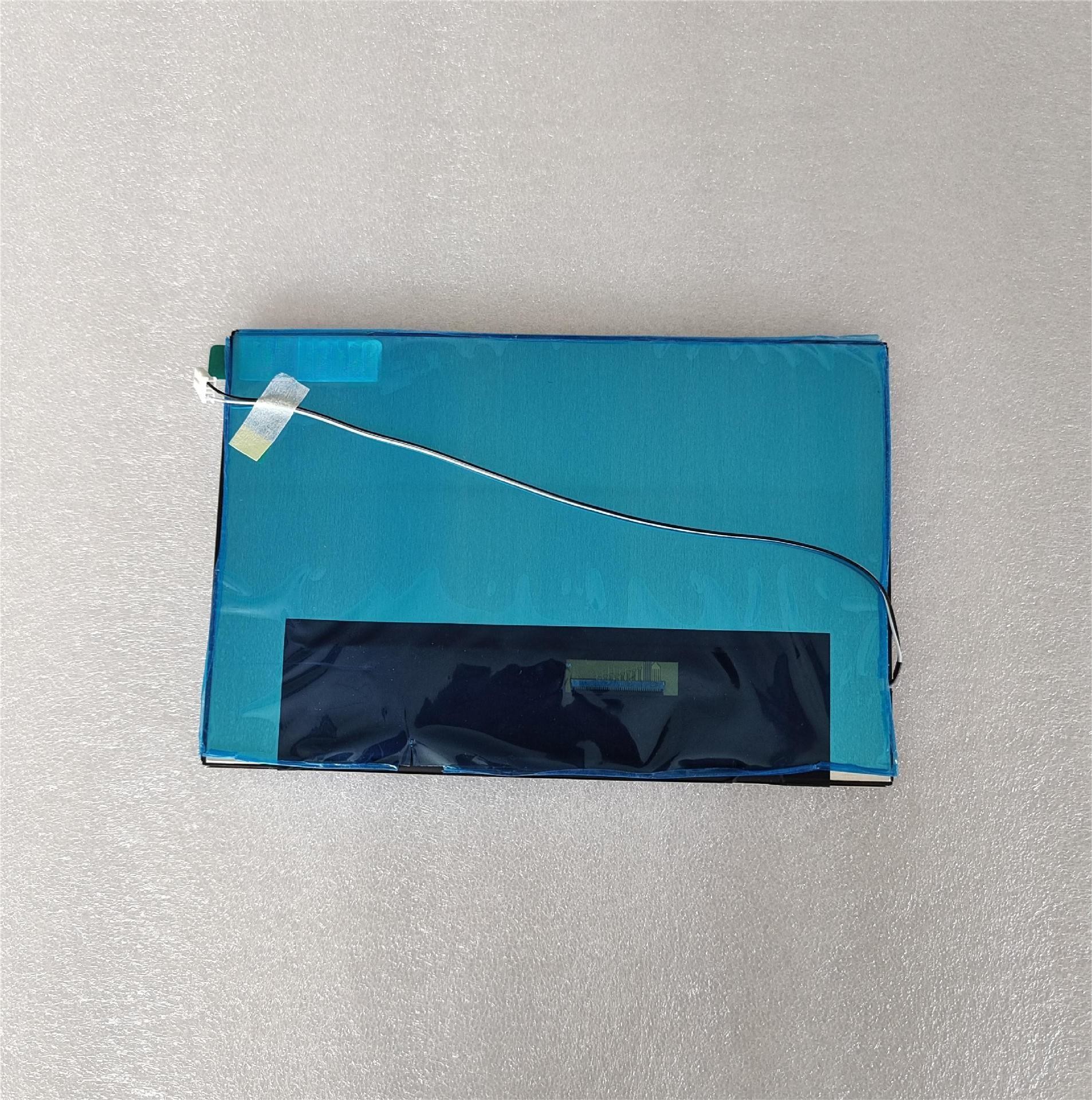

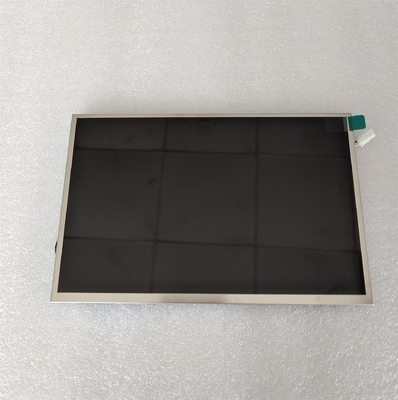

8  Inch TFT Display Module,  1920*1200 Resolution,  LVDS 45PIN Interface Min1000c/D 08  Inch TFT Display Module,  1920*1200 Resolution,  LVDS 45PIN Interface Min1000c/D 18  Inch TFT Display Module,  1920*1200 Resolution,  LVDS 45PIN Interface Min1000c/D 2

C: Drawing

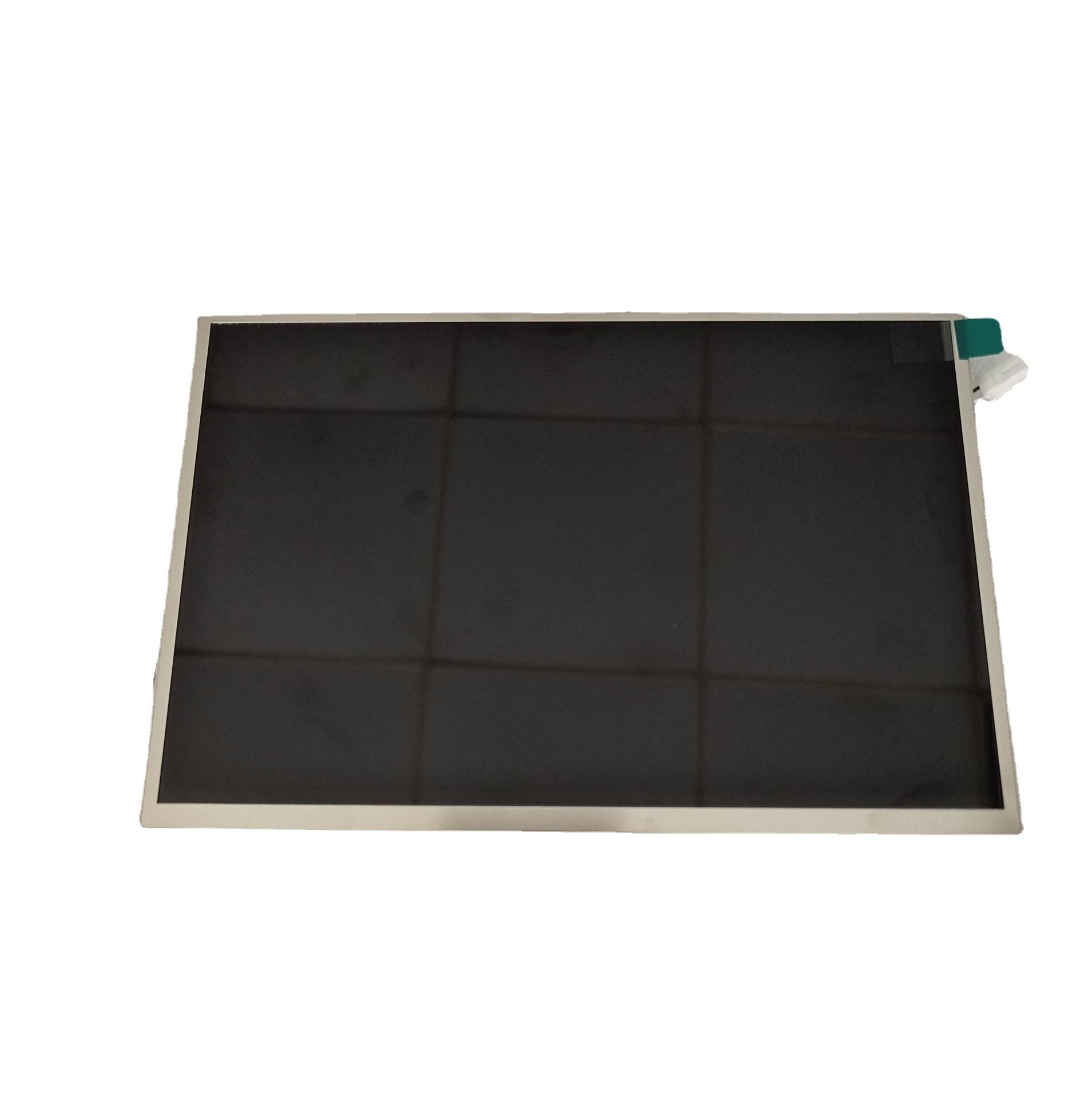

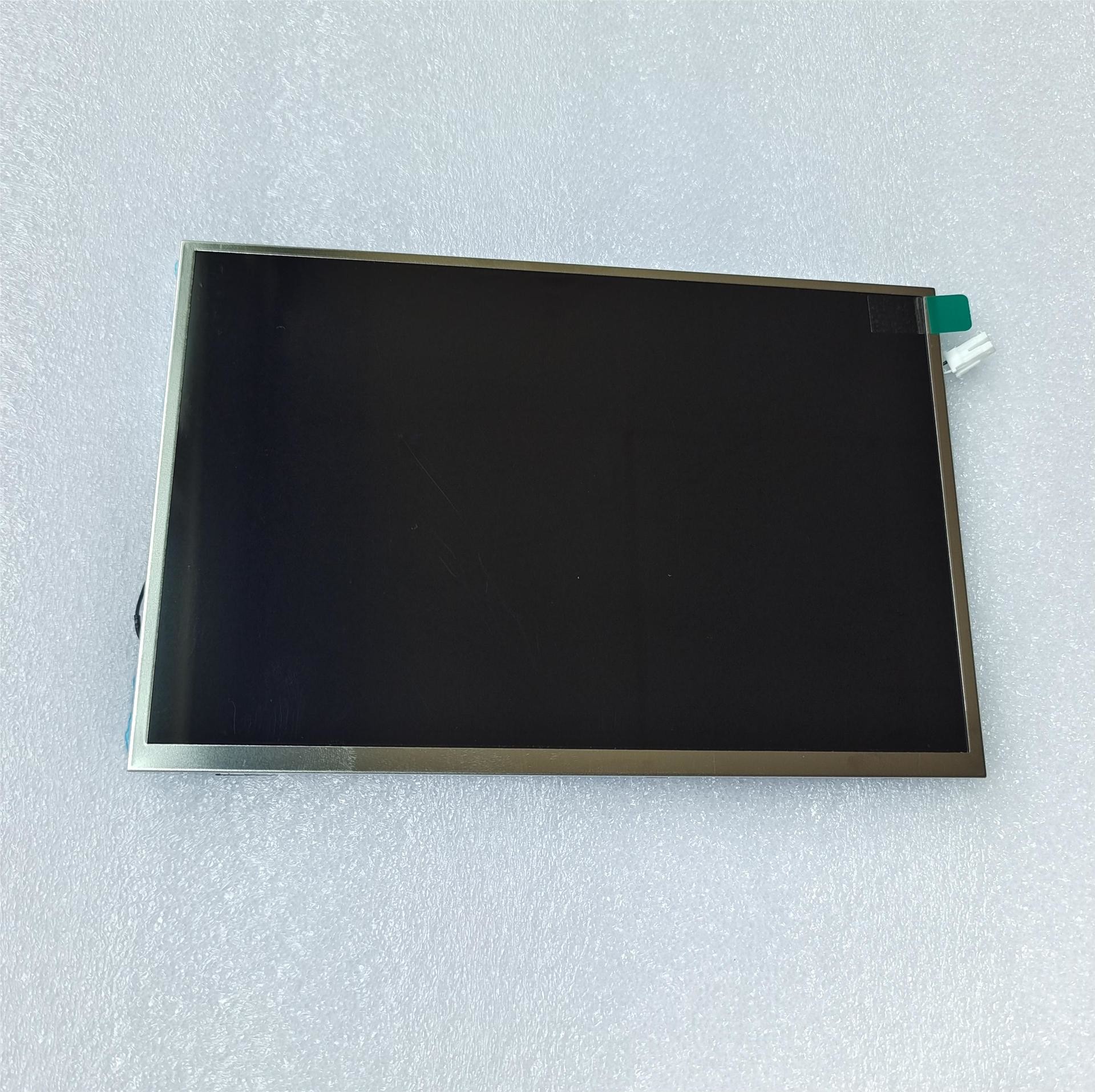

8  Inch TFT Display Module,  1920*1200 Resolution,  LVDS 45PIN Interface Min1000c/D 38  Inch TFT Display Module,  1920*1200 Resolution,  LVDS 45PIN Interface Min1000c/D 4

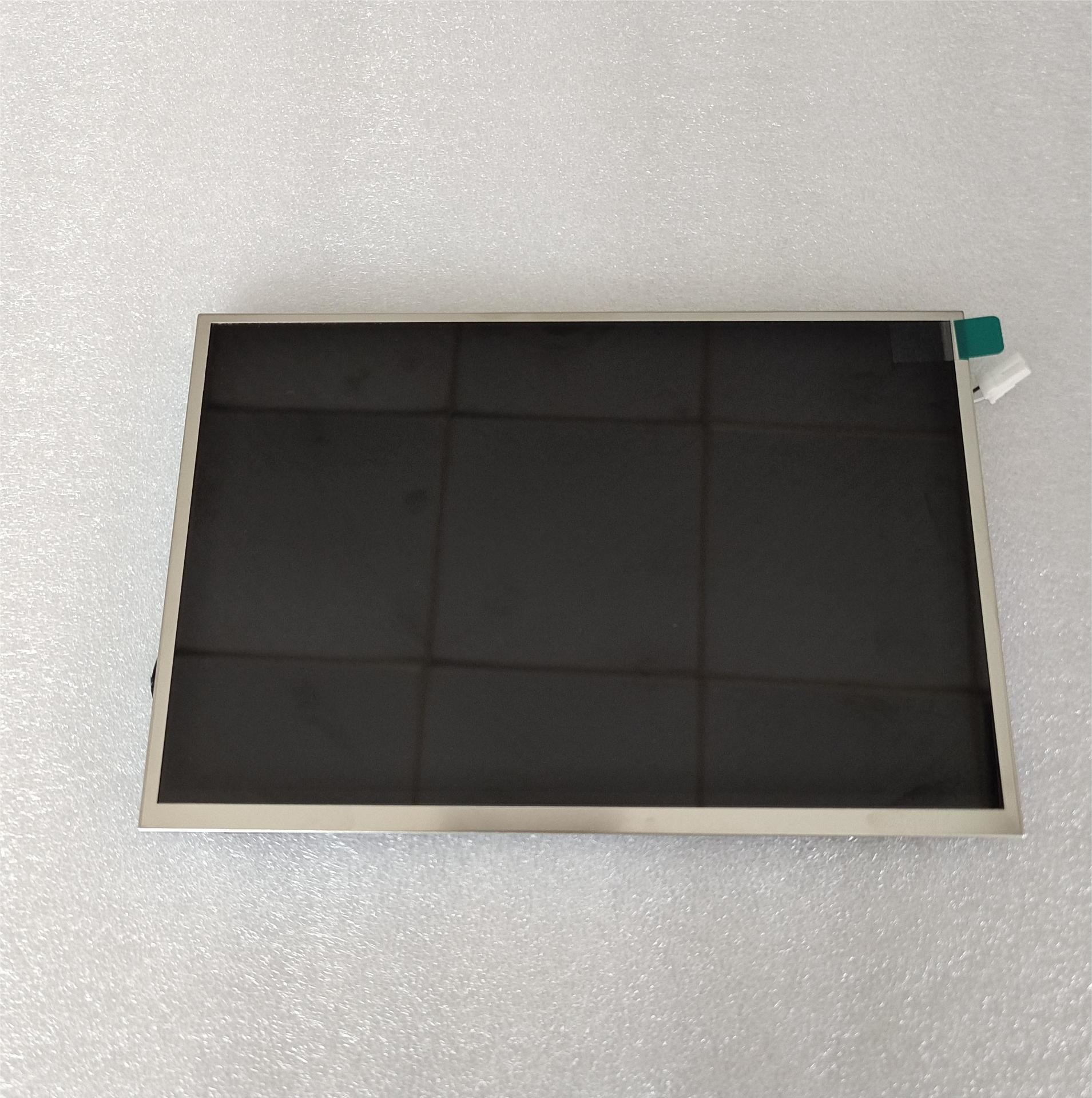

8  Inch TFT Display Module,  1920*1200 Resolution,  LVDS 45PIN Interface Min1000c/D 5
