7 inch TFT display module , 1920x1200 Resolution, 30 pins LVDS, 800~1000 C/D brightness

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO13485/ISO9001/IATF16949
Model Number ESHX070WU0130HL
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Module Name TFT Display
Size 7" Resolution 1920x1200
Brightness 800~1000 Cd/m2 Drive IC ER88477
View Angle Free View Angle Interface 30 PINS LVDS
Leave a Message
Product Description

ESHX070WU0130HL is 7 inch TFT display  module, 1920x1200  Resolution, 30 pins LVDS  interface,driving IC ER88477,800~1000c/d .ESHX070WU0130HL-A10 is a color active matrix thin film transistor (TFT) IPS liquid crystal display ( LCD) that uses amorphous silicon TFT as a switching device. It is composed of aTFT LCD panel, Driver IC , FPC and Backlight.

for more details, pls kindly download datasheet from this linkESHX070WU0130HL A10.pdf



A. Product Parameter



Part NO. ESHX070WU0130HL
Panel size 7 inch TFT display module
Resolution 1920x1200
Viewing Angle Free
Operation Temperature -20~70
storage temperature -30~80
Panel Size(mm) 161 (W)× 98.8 (H)×7.39 (D)
Active Area (mm) 151.37 x 94.50
Brightness(cd/m2) 800~1000c/d
Interface 30 PINS LVDS
drive IC ER88477

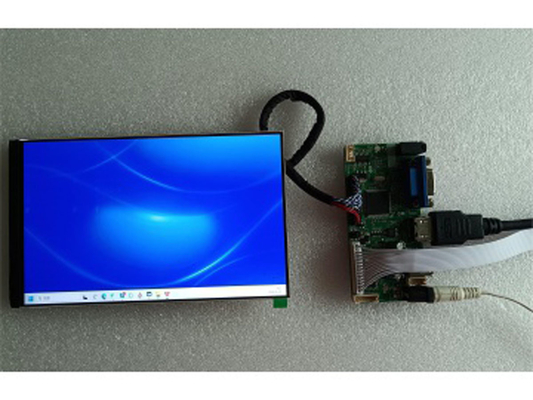

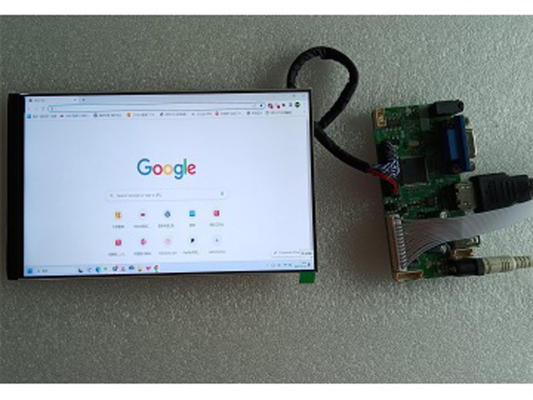

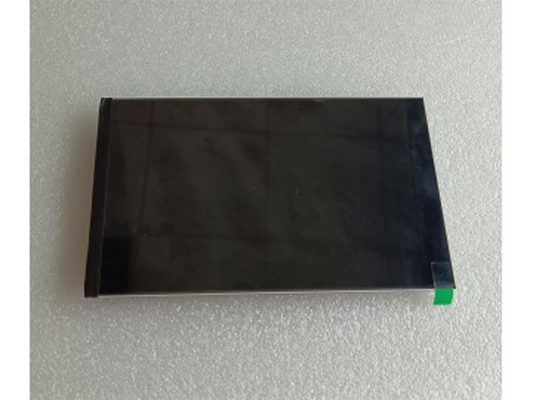

B.Product Picture



7 inch  TFT display module , 1920x1200  Resolution, 30 pins LVDS, 800~1000 C/D brightness 07 inch  TFT display module , 1920x1200  Resolution, 30 pins LVDS, 800~1000 C/D brightness 17 inch  TFT display module , 1920x1200  Resolution, 30 pins LVDS, 800~1000 C/D brightness 2

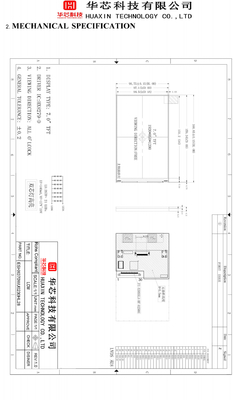

C. Drawing


7 inch  TFT display module , 1920x1200  Resolution, 30 pins LVDS, 800~1000 C/D brightness 3



D. TFT product  knowledge

tft substrate input and CF substrate input flow chart as below


7 inch  TFT display module , 1920x1200  Resolution, 30 pins LVDS, 800~1000 C/D brightness 4



TFT structure  as below

7 inch  TFT display module , 1920x1200  Resolution, 30 pins LVDS, 800~1000 C/D brightness 5
