3.97 Inch LCD TFT Display, 480X800 resolution, MIPI Interface Free View Angle

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX0397WV0012B-A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Module Name TFT Display
Size 3.97" Resolution 480x800
Drive IC GC9503CV View Angle Free
Interface MIPI
High Light

MIPI interface TFT Display module

,

3.97 Inch LCD TFT Display

,

480X800 TFT LCD Display

Leave a Message
Product Description

ESHX0397WV0012B-A is 3.97 inch  TFT  LCD display , 480X800  Resolution,MIPI interface  ,TFT lcd module and lcd Module Driver IC is GC9503CV, wide temperature is -20~+70



A:Product Parameter



TFT Number ESHX397WV0012B-A
TFT SIZE 3.97寸
Display format 480×RGB×800dots
Viewing Direction ALL
Drive IC GC9503V
Interface MIPI
Power voltage 2.8V(typ.).
Outline Size 57.14(W) x96.85(H) x 2.1mm
LCD active area 51.84x86.4mm
Color configuration RGB stripes
Pxiel pitch 0.108 x 0.108mm
Operating Temp: -10~+60℃
Storage Temp. -20~+70℃

B.Product Picture

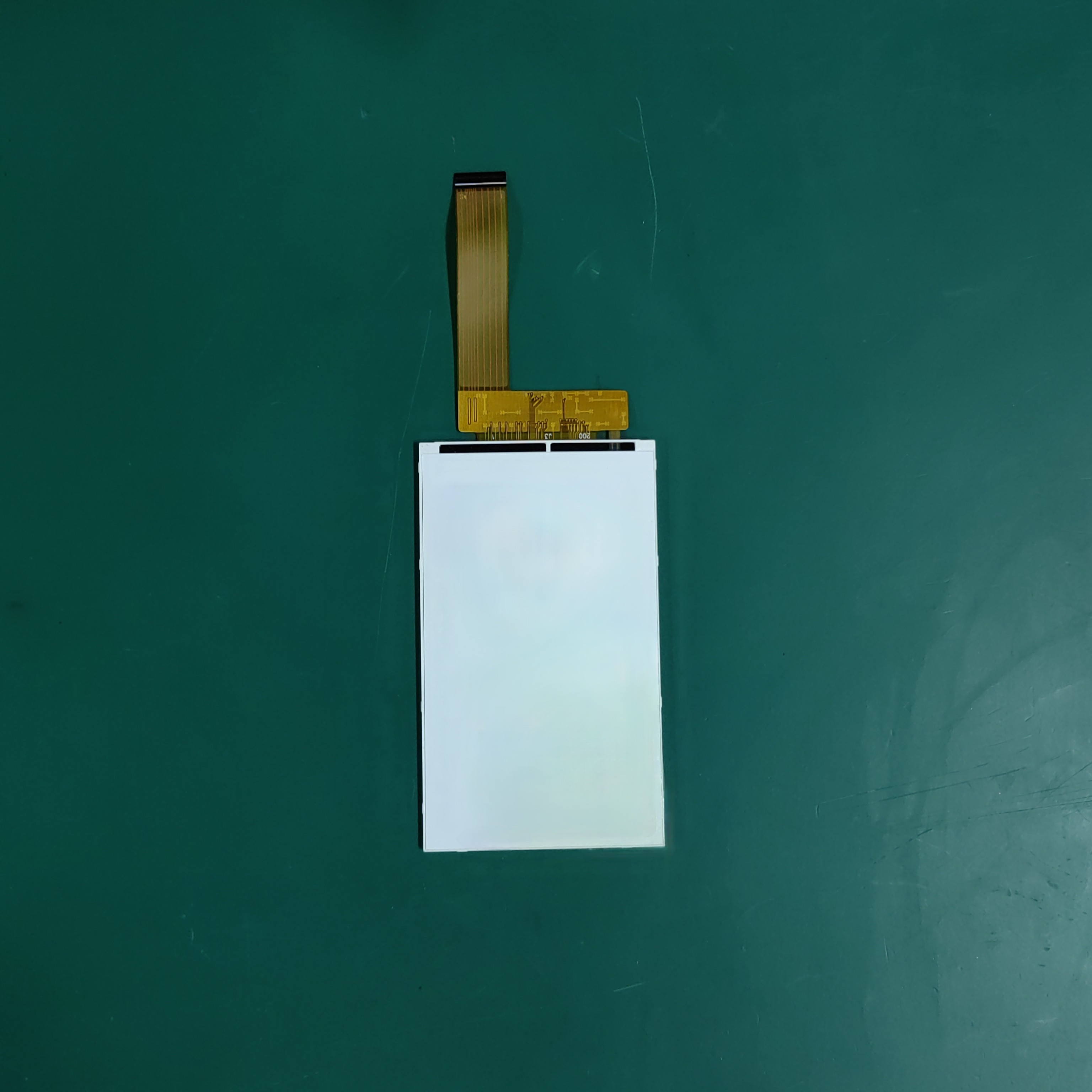

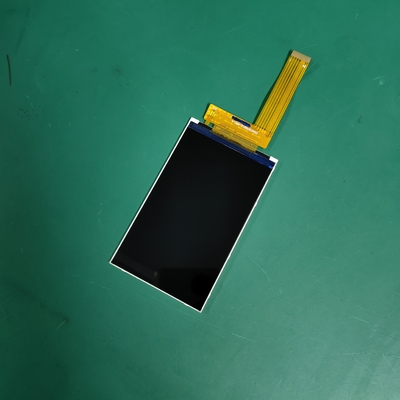

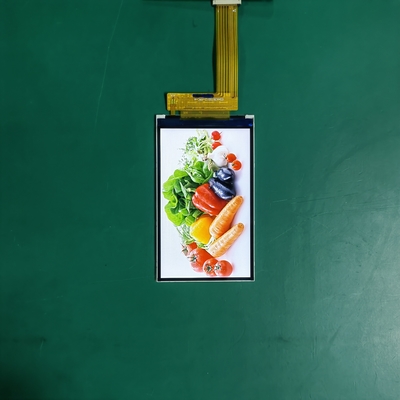

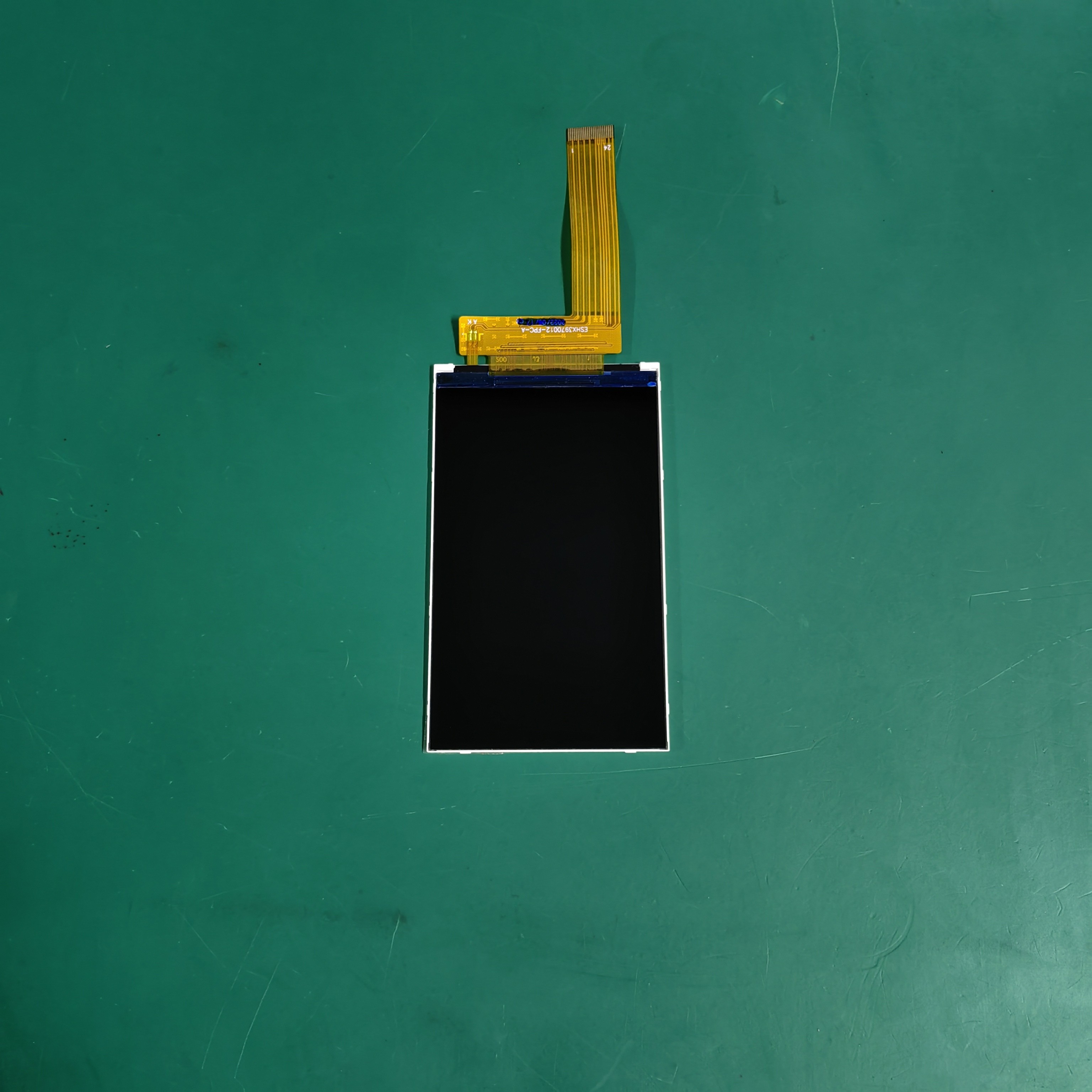

3.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 03.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 13.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 23.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 33.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 4

C:Drawing

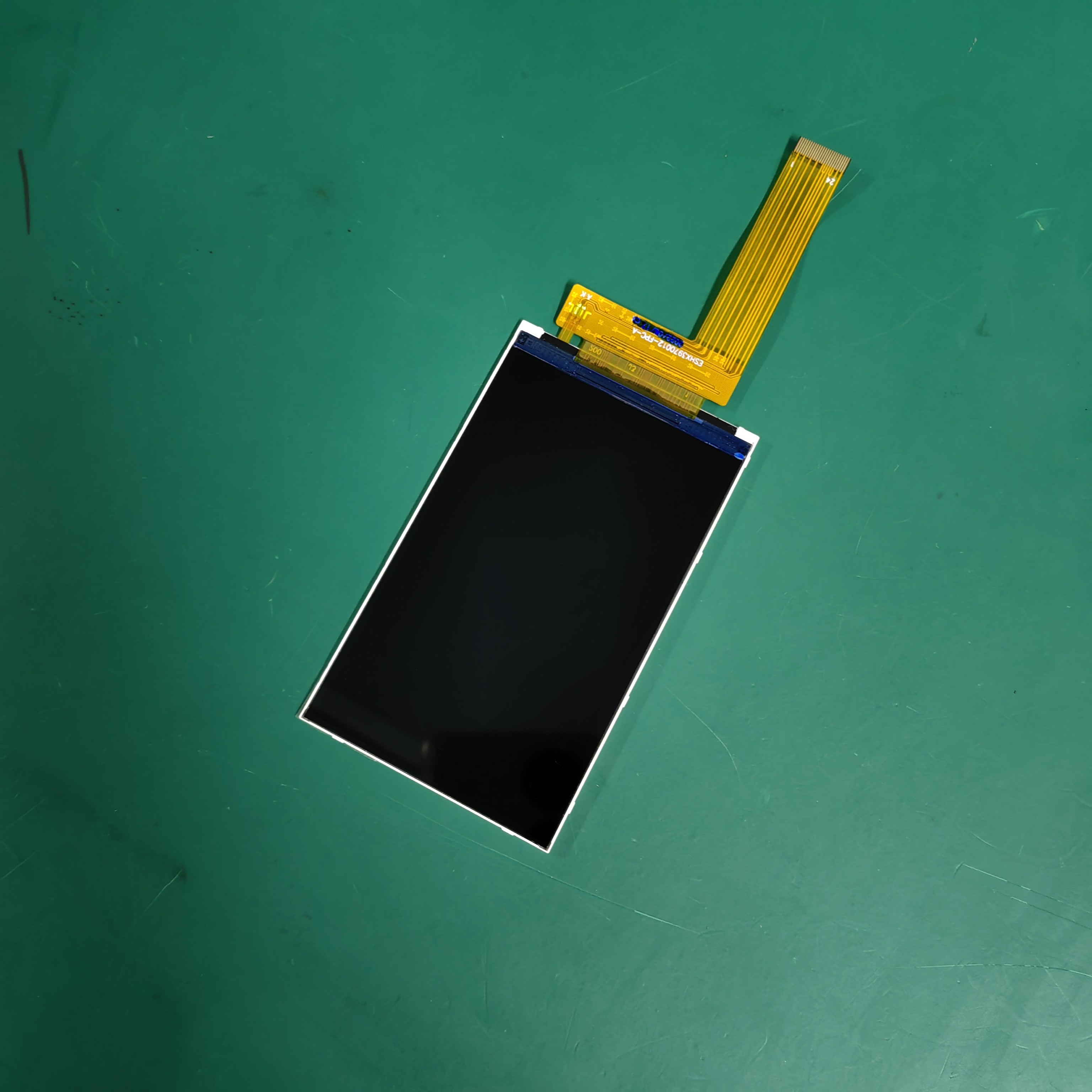

 3.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 5


D:TFT Product  Knowledge

tft substrate input and CF substrate input flow chart as below

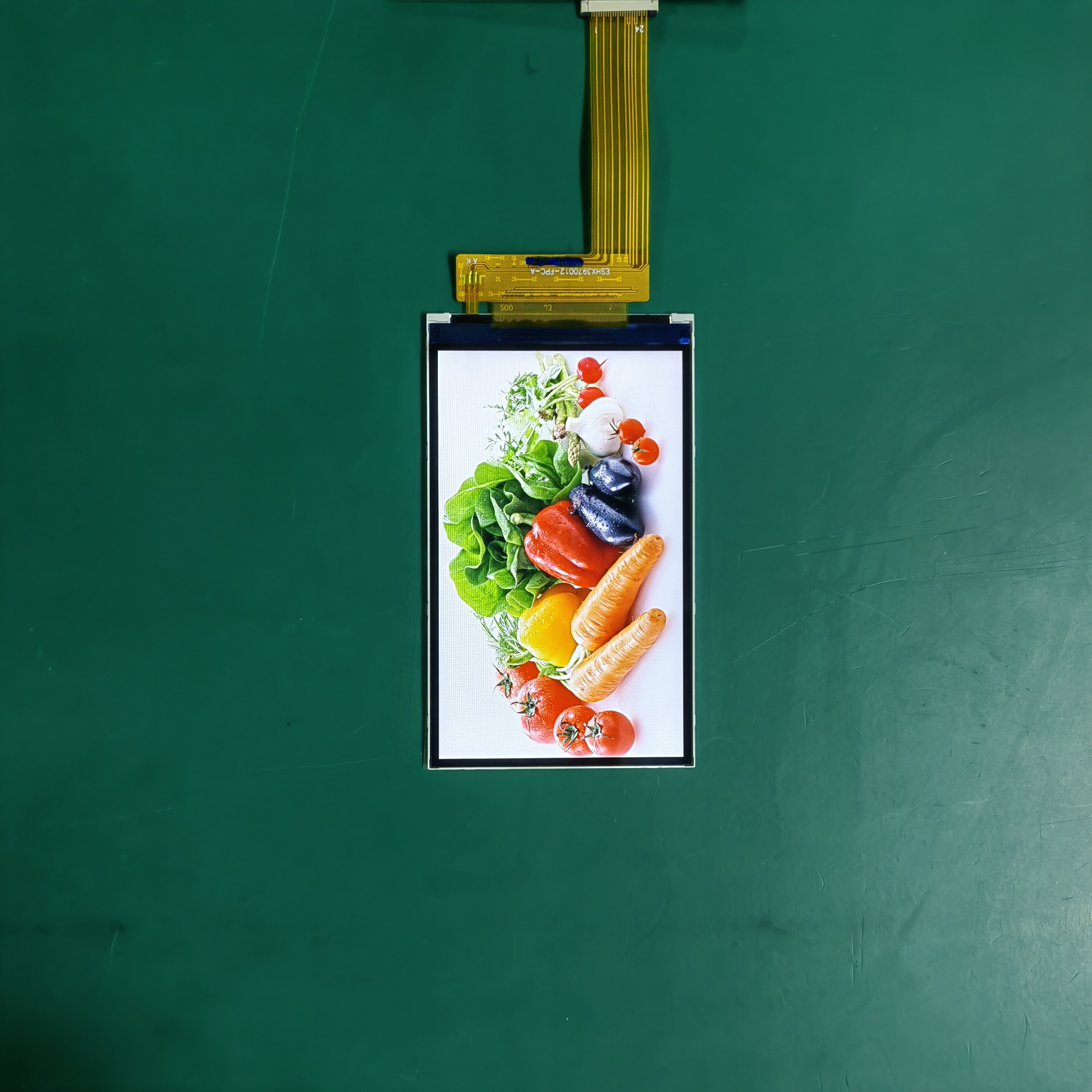

3.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 6



TFT structure  as below

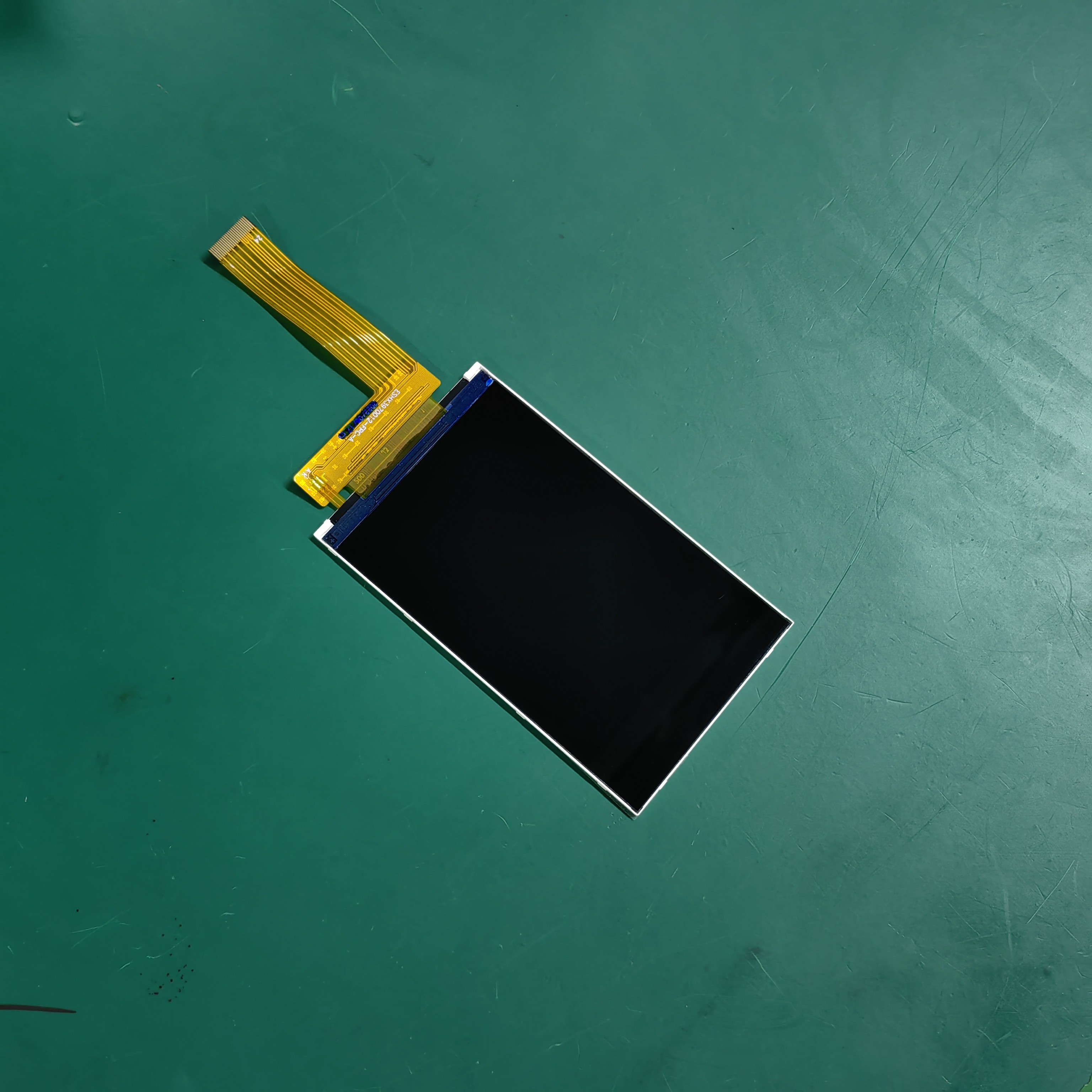

3.97 Inch LCD TFT Display,  480X800 resolution,  MIPI Interface  Free View Angle 7
