2.8 Inch TFT LCD Display, 240X320, 8bit/16bit MCU Interface, Free View Angle

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX028Q01S
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Module Name TFT Display
Size 2.8" Resolution 240x320
Drive IC ST7789 View Angle Free
Interface 8bit/16bit MCU Interface
High Light

2.8 Inch TFT LCD Display

,

TFT LCD Display 240X320

,

TFT lcd module Display

Leave a Message
Product Description

ESHX028Q01S  is 2.8 inch  TFT  LCD display , 240X320  Resolution,8bit/16bit MCU interface  RGB  interface,  TFT lcd module and lcd Module Driver IC is ST7789, wide temperature is -20~+60



A:Product Parameter

TFT Number ESHX028Q01S
TFT SIZE 2.8寸
Display format 240×RGB×320dots
Viewing Direction 12 O’CLOCK
Drive IC ST7789V
Interface 8bit/16bit MCU interface
Power voltage 2.8V(typ.).
Outline Size 50(W) x69.2(H) x 2.3(D)mm
LCM Outline dimensions 50(W) x69.2(H) x 2.3(D)mm
LCD active area 43.2x57.6mm
Color configuration RGB stripes
Pxiel pitch 0.06 x 0.18mm
Operating Temp: -10~+50℃
Storage Temp. -20~+60℃



B:Product Picture

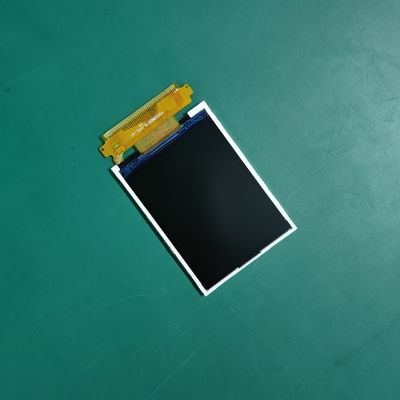

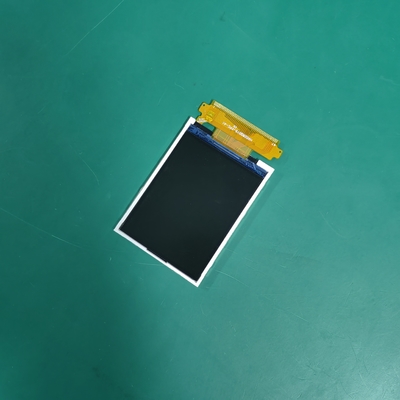

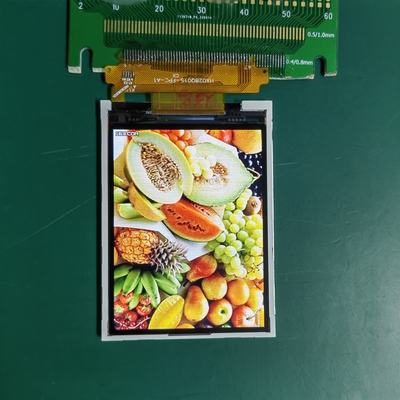

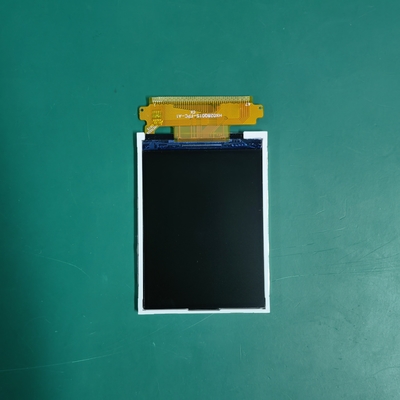

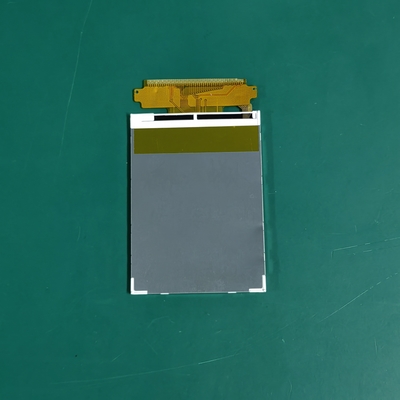

2.8  Inch TFT LCD Display,  240X320,  8bit/16bit MCU Interface,  Free View Angle 02.8  Inch TFT LCD Display,  240X320,  8bit/16bit MCU Interface,  Free View Angle 12.8  Inch TFT LCD Display,  240X320,  8bit/16bit MCU Interface,  Free View Angle 22.8  Inch TFT LCD Display,  240X320,  8bit/16bit MCU Interface,  Free View Angle 32.8  Inch TFT LCD Display,  240X320,  8bit/16bit MCU Interface,  Free View Angle 4
