1.83 Inch LCD TFT Display, 240X284 resolution, 15 Pins 4 Wire SPI Interface, NV3030B Driving IC

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX018B072
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Display Module Name 1.83 Inch TFT
Size 1.83 " Resolution 240X284
Brightness 350 Cd/m2 Interface 15 Pins 4-wire SPI
Drive IC NV3030B View Angle Free View Angle
High Light

1.83 inch LCD TFT Display

,

LCD TFT Display 240X280

,

GC9307 spi tft lcd

Leave a Message
Product Description

ESHX018B072 is1.83  inch TFT display module , 240X284 Resolution, 15 PINS 4-wire SPI  interface, brightness is 350 cd/m2 TFT lcd, Module Driver IC is NV3030B  and view angle is free



A:Product Parameter

ITEM specification
Model Number ESHX018B072
size 1.83 inch TFT
LCD Type IPS
Number of pixels 240X280
Active area 30.2X35.23MM
OutlineSize(W*H*T) 32.2X39.23X1.6MM
Viewing direction free view angle
LCM Driver IC NV3030B
LCM interface 4-wire SPI
PIN number 15 pins
LED number 6pcs
operating temperature -20~70
storage temperature -30 to +80
Luminance 350 c/d



B:Product Picture

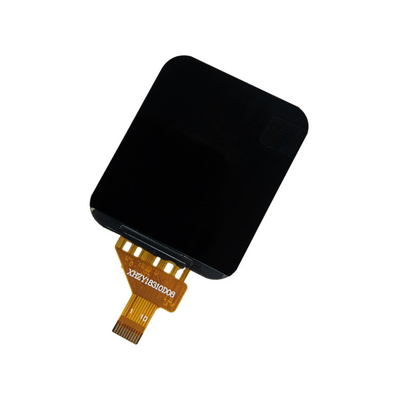

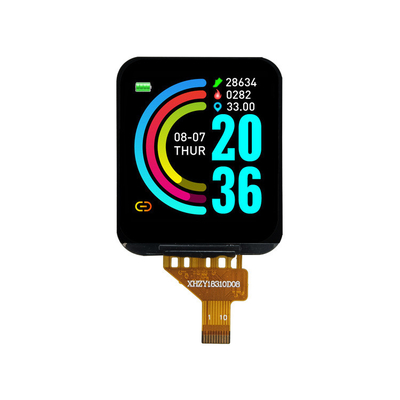

1.83 Inch LCD TFT Display,  240X284  resolution,  15 Pins 4 Wire SPI Interface,  NV3030B Driving IC 01.83 Inch LCD TFT Display,  240X284  resolution,  15 Pins 4 Wire SPI Interface,  NV3030B Driving IC 11.83 Inch LCD TFT Display,  240X284  resolution,  15 Pins 4 Wire SPI Interface,  NV3030B Driving IC 2


C:Drawing

.....................................................................................

D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1.83 Inch LCD TFT Display,  240X284  resolution,  15 Pins 4 Wire SPI Interface,  NV3030B Driving IC 3



TFT structure  as below

1.83 Inch LCD TFT Display,  240X284  resolution,  15 Pins 4 Wire SPI Interface,  NV3030B Driving IC 4
