2 Inch TFT Display LCD, 480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX020HCSA-01
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Screen Name Lcd Screen Display
Size 2 " Resolution 480*360
Brightness 350cd/m2 Drive IC ST7701S
View Angle Free Interface 30 PINS 2LANE MIPI
High Light

MIPI 2 inch tft display

,

tft display lcd 480x360

,

tft display lcd 2 lane

Leave a Message
Product Description

ESHX020HCSA-01  is 2 inch  TFT  LCD display , 480X360  Resolution,30 PINS  2LANE MIPI interface, brightness is 350 cd/M2 TFT lcd  and lcd Module Driver IC is ST7701S  and  View angle is free



A:Product Parameter

Part No: ESHX020HCSA-01
Panel size 2 inch TFT module
LCD type IPS
Module Size 46.60*41.40*2.75
Display Area 40.82*30.62
Number of Dots 480*360
View angle ALL
Module Driver IC ST7701S
CTP Driver IC /
Interface Pins 30 PINS 2LANE MIPI
LED Numbers 4pcs
Luminance 350cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP without

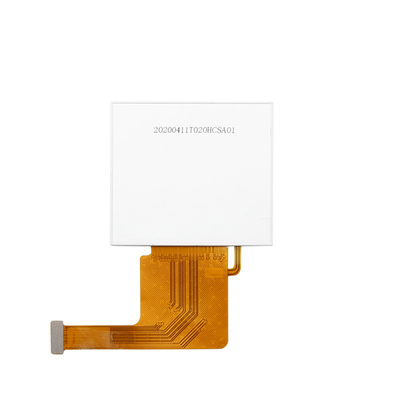

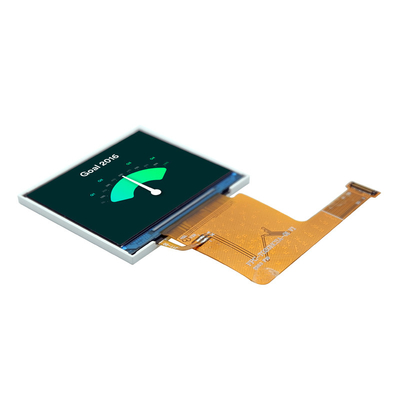

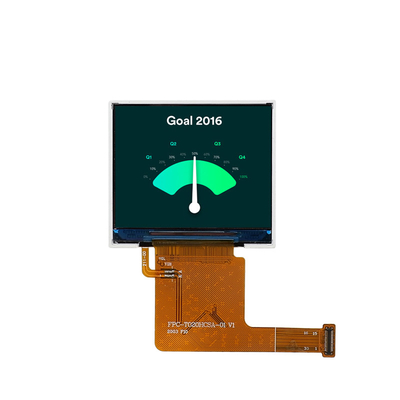

B:Product Picture

2 Inch TFT Display LCD,  480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness 0


2 Inch TFT Display LCD,  480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness 1

2 Inch TFT Display LCD,  480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness 2


C: Drawing

 2 Inch TFT Display LCD,  480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness 3


D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


2 Inch TFT Display LCD,  480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness 4



TFT structure  as below

2 Inch TFT Display LCD,  480x360 Resolution , 30 PINS 2LANE MIPI Interface 350cd/M2 Brightness 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
