1.47 Inch TFT Display Module , 172X320 Resolution, MUC SPI Interface 600 CD/M2

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX147LMN09A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Lcd Module Name TFT Display
Size 1.47" Resolution 172X320
Brightness 600cd/m2 Drive IC ST7789V3
View Angle Free View Angle Interface MCU/SPI
Highlight

1.47 inch tft display module

,

TFT display module 172X320

,

600 CD/M2 spi tft module

Leave a Message
Product Description

ESHX147LMN09A is  1.47 inch  TFT display , 172X320  Resolution, MCU/SPI interface, brightness is 600 cd/M2 TFT lcd module and lcd Module Driver IC is ST7789V3 and applied for  watch/bracelet



A:Product Parameter

ITEM specification
Model Number ESHX147LMN09A
size 1.47 inch TFT
LCD Type IPS
Number of pixels 172X320
Active area 17.389x32.352mm
OutlineSize(W*H*T) 19.39x36.28x1.46mm
Viewing direction free view angle
LCM Driver IC ST7789V3
LCM interface MCU/SPI interface
PIN number 24pins
LED number 6pcs
operating temperature -20~70
storage temperature -30 to +80
Luminance 600 c/d

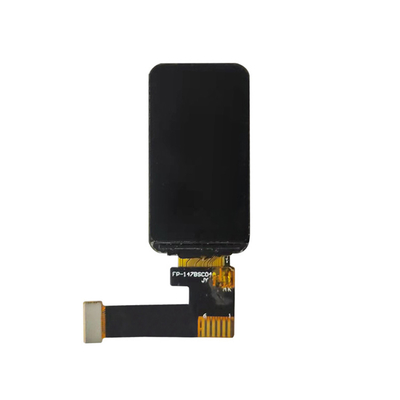

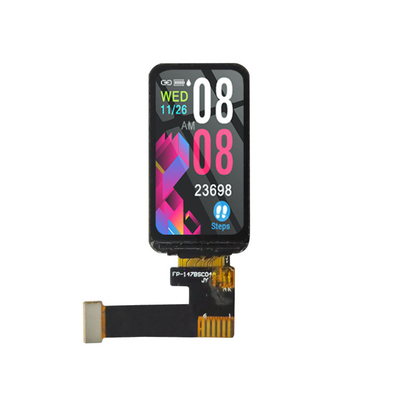

B:Product Picture

1.47 Inch TFT Display Module , 172X320 Resolution, MUC SPI Interface 600 CD/M2 0

1.47 Inch TFT Display Module , 172X320 Resolution, MUC SPI Interface 600 CD/M2 1
1.47 Inch TFT Display Module , 172X320 Resolution, MUC SPI Interface 600 CD/M2 2

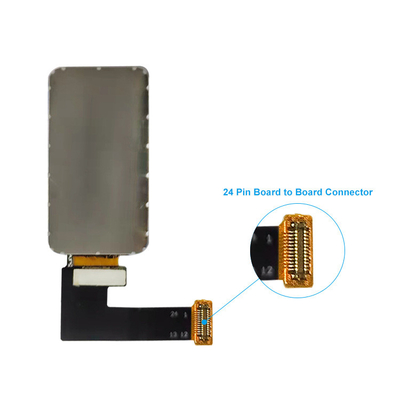

C:Drawing
