5.6 Inch LCD TFT Display ,640x480 Resolution, 40 Pins 18bit RGB Interface

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX056TN53-01
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Display Name Industrial Lcd Modules
Size 5.6" Resolution 640*480
Brightness 800cd/m2 Interface 40 Pins 18bit RGB
View Angle 12:00
Highlight

5.6 inch LCD TFT Display

,

LCD TFT Display 640x480

,

40pins lcd display tft

Leave a Message
Product Description

ESHX056TN53-01 panel size is 5.6 inch lcd  module and number of dots is 640x480 and 40 pins 18 bit RGB interface, view angle is 12:00O'clock, high brightness 800cd/m2 ,



A: Product Parameter

Part No: ESHX056TN53-01
Panel size 5.6 inch panel
LCD type TN
Module Size 126.50*100.00*5.70
Display Area 112.896*84.672
Number of Dots 640*480
View angle 12:00
Module Driver IC /
CTP Driver IC /
Interface Pins 40 pins 18bit RGB
LED Numbers 3pcs
Luminance 800cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP /



B:Product Picture

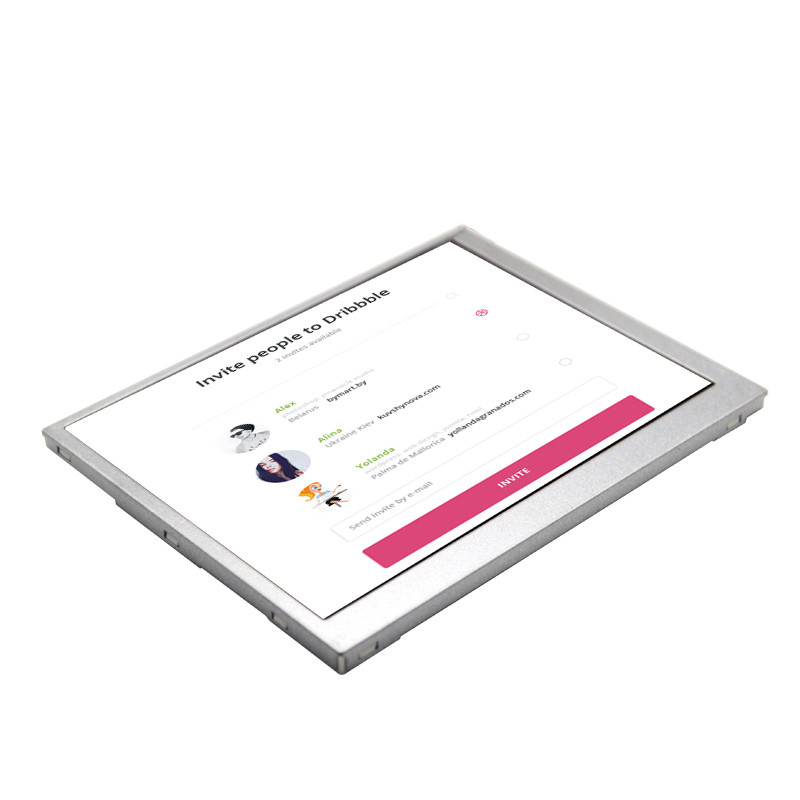

5.6 Inch LCD TFT Display ,640x480 Resolution,  40 Pins 18bit RGB Interface 0

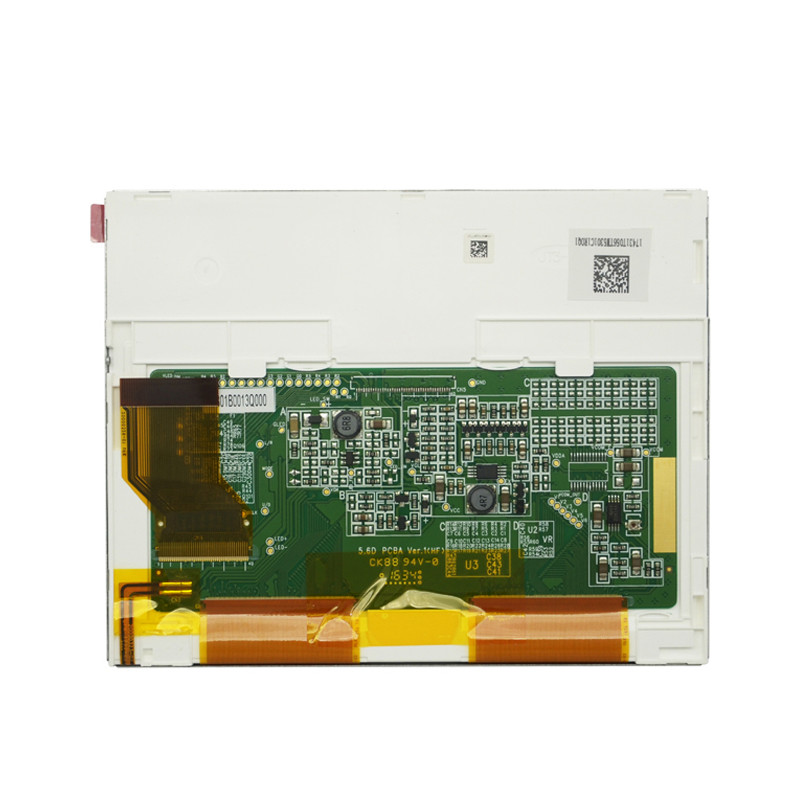

5.6 Inch LCD TFT Display ,640x480 Resolution,  40 Pins 18bit RGB Interface 1

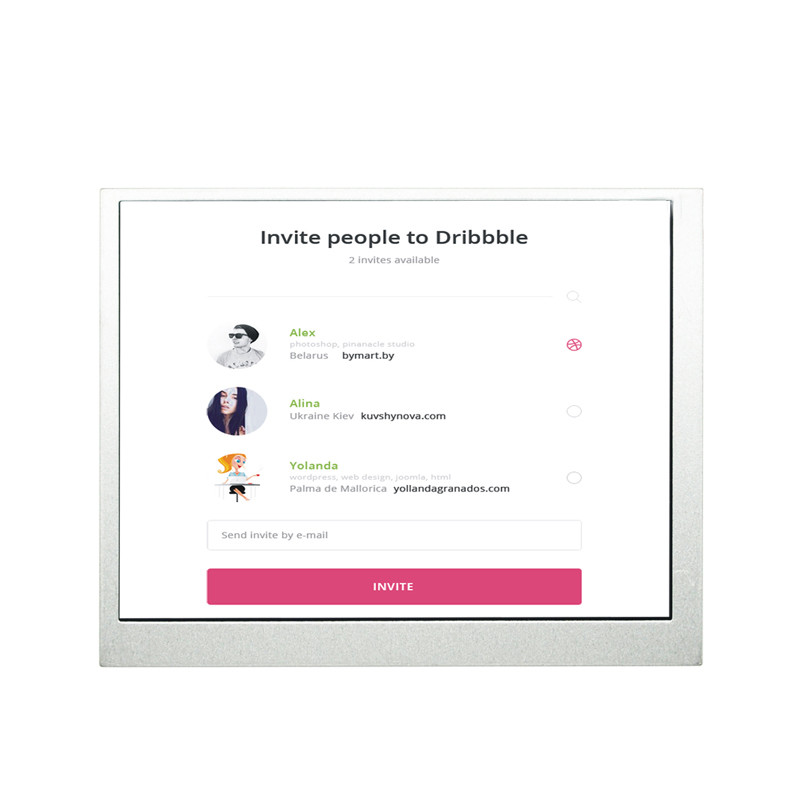

5.6 Inch LCD TFT Display ,640x480 Resolution,  40 Pins 18bit RGB Interface 2
