4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2

  • 4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2
  • 4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2
  • 4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2
  • 4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2
  • 4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2
  • 4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX043HPWA-03
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Display Name Lcd Screen Display
Size 4.3" Resolution 480*272
Brightness 1000cd/m2 Interface 40 Pins 24bit RGB
View Angle All Driving IC SC7283
High Light

RGB 4.3 inch tft lcd display

,

40pin 4.3 inch tft lcd display

,

24bit 4.3 tft display
Leave a Message
Product Description

ESHX043HPWA-03  panel size is 4.3 inch lcd tft and number of dots is 480x272 and 40 pins 24 bit RGB  interface, view angle is free, high brightness 1000cd/m2 , Module Driver IC is SC7283



A:Product Parameter

Part No: ESHX043HPWA-03
Panel size 4.3 inch TFT
LCD type IPS
Module Size 105.50*67.20*2.95
Display Area 95.04*53.86
Number of Dots 480*272
View angle ALL
Module Driver IC SC7283
CTP Driver IC /
Interface Pins 24bit RGB 40PIN
LED Numbers 6PCS LED
Luminance 1000cd/m2
Operating Temp -30~+85
Storage Temp -30~+85
with or without TP /

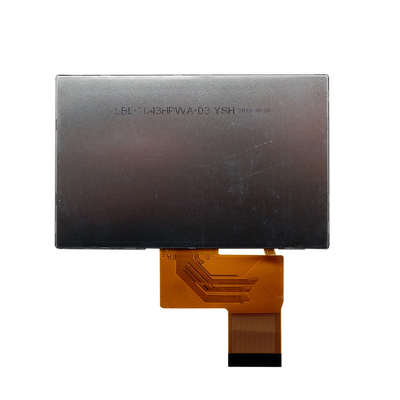

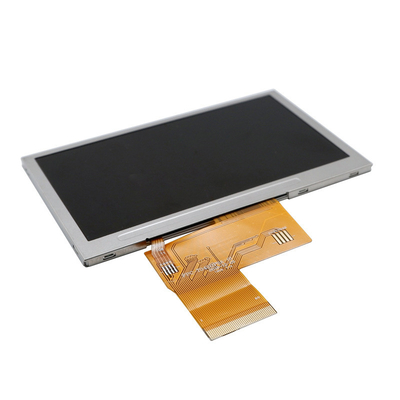

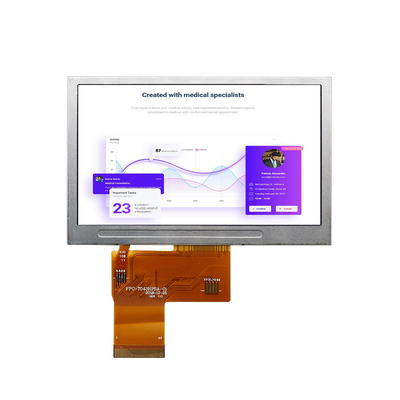

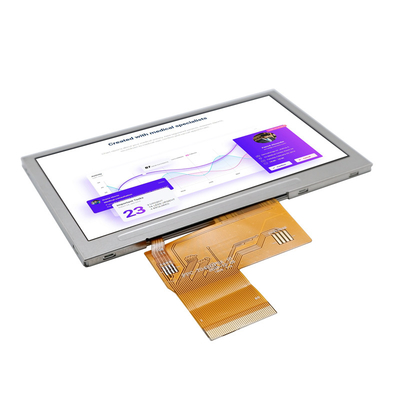

B: Product Picture

4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2 0

4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2 1

4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2 2

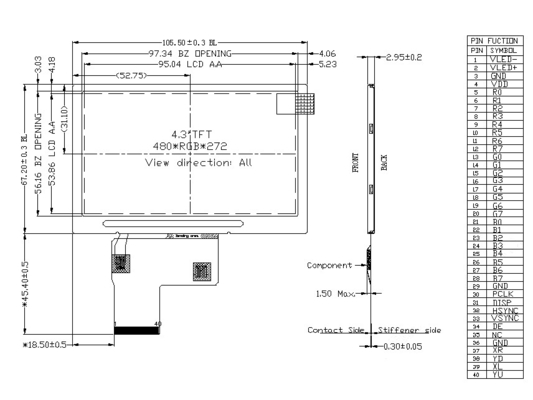

C:Drawing



4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2 3

D: TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2 4



TFT structure as below

4.3 Inch Tft Lcd Display, 480x272 Resolution, 24bit RGB 40PIN Interface , 1000cd/M2 5




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
