3.5 Inch 900cd/M2 LCD TFT Display, 320x240 Resolution, 54 Pins 24bit RGB Interface

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX035MLH-26
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology TFT Module Name Lcd Screen
Size 3.5" Resolution 320*240
Brightness 900cd/m2 Interface 24bit RGB 54PIN
View Angle 12:00 Driving IC HX8238D
High Light

LCD TFT Display 320x240

,

900cd/m2 LCD TFT Display

,

RGB 3.5 inch tft display

Leave a Message
Product Description

ESHX035MLH-26 panel size is 3.5 inch TFT and number of dots is 320x240 and 54 pins 24 bit RGB interface, view angle is 12:00, high brightness 900cd/m2 , driving IC is HX8238D



A:Product Parameter

Part No: ESHX035MLH-26
Panel size 3.5 inch TFT
LCD type TN
Module Size 76.84*63.84*3.15
Display Area 70.08*52.56
Number of Dots 320*240
View angle 12:00
Module Driver IC HX8238D
CTP Driver IC /
Interface Pins 24bit RGB 54PIN
LED Numbers 8 leds
Luminance 900cd/m2
Operating Temp -20~+70
Storage Temp -30~+80
with or without TP /



B: Product Picture

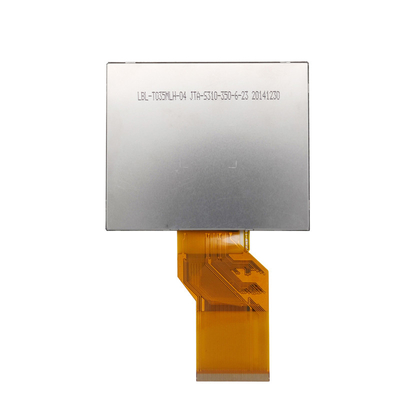

3.5 Inch 900cd/M2 LCD TFT Display,  320x240 Resolution,  54 Pins 24bit RGB Interface 0

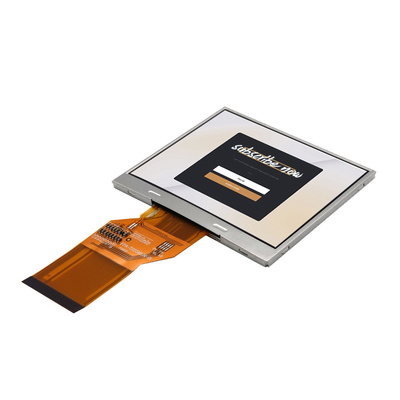

3.5 Inch 900cd/M2 LCD TFT Display,  320x240 Resolution,  54 Pins 24bit RGB Interface 1

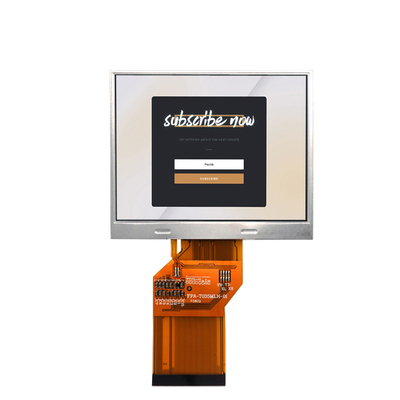

3.5 Inch 900cd/M2 LCD TFT Display,  320x240 Resolution,  54 Pins 24bit RGB Interface 2

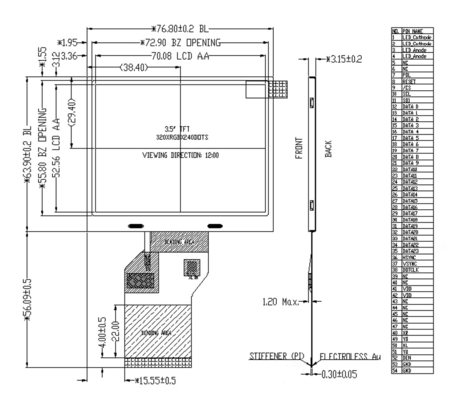

C: Drawing

3.5 Inch 900cd/M2 LCD TFT Display,  320x240 Resolution,  54 Pins 24bit RGB Interface 3



D: TFT Product Knowledge



tft substrate input and CF substrate input flow chart as below


3.5 Inch 900cd/M2 LCD TFT Display,  320x240 Resolution,  54 Pins 24bit RGB Interface 4



TFT structure as below

3.5 Inch 900cd/M2 LCD TFT Display,  320x240 Resolution,  54 Pins 24bit RGB Interface 5
