7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface

  • 7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface
  • 7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface
  • 7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface
  • 7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX070WU01
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Tft Module Name Tft Panel
Size 7" Resolution 1200x1920
Brightness 800 Cd/m2 Interface HDMI
Drive IC ER88477 View Angle Free View Angle
Highlight

HDMI 7 inch TFT LCD display

,

800CD/M2 7 inch TFT LCD display

,

1200x1920 hdmi tft display
Leave a Message
Product Description

ESHX070WU01 is  7 inch tft display with converted board ,1200x1920 resolution, brightness is 800CD/M2, HDMI interface tft panel,drive IC is ER88477 and apply for advertising display



You can download datasheet from this link:ESHX070WU01-40P V2 Specification.pdfHDMI TO MIPI converted board.pdf



A:Product Parameter

Part NO. ESHX070WU01
Panel size 7 inch tft with converted board
Resolution 1200x1920
Viewing Angle All View
Operation Temperature -20~70
Panel Size(mm) 98.8 (W)× .161.0(H)× .1.89D)
Active Area (mm) 94.50 (W)x 151.37 (H)
Pixel Pitch (mm) 0.07875 (W)×0. 07875 (H)
Contrast Ratio 10000
Brightness(cd/m2) 800CD/M2
Interface HDMI
drive IC ER88477

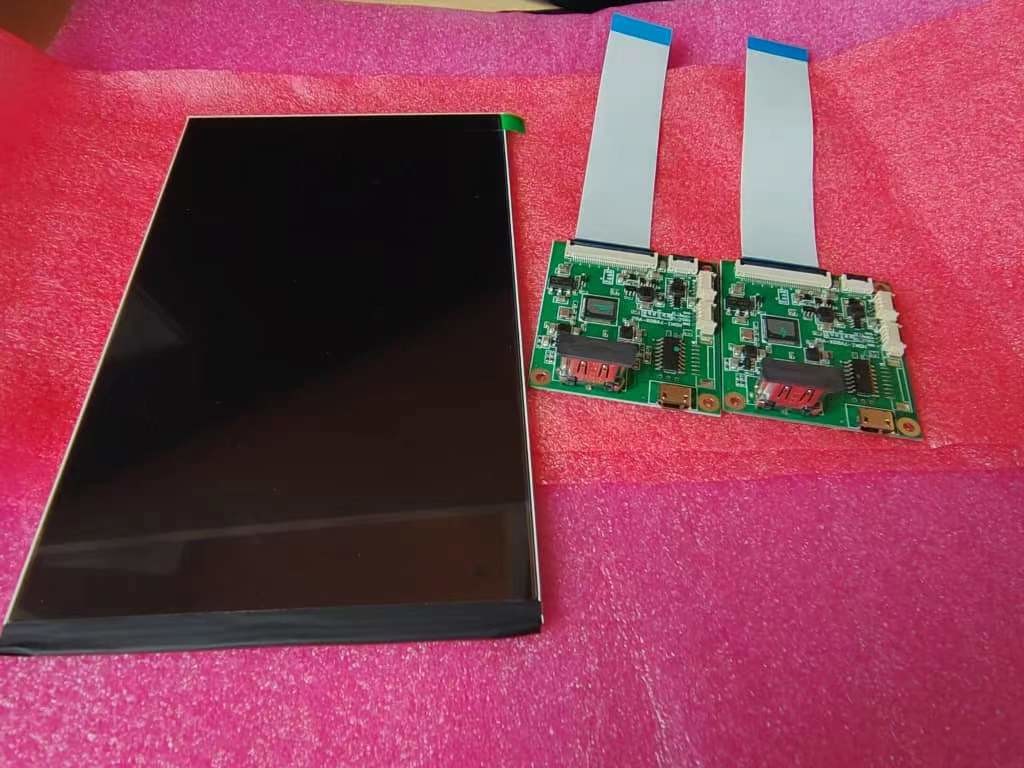

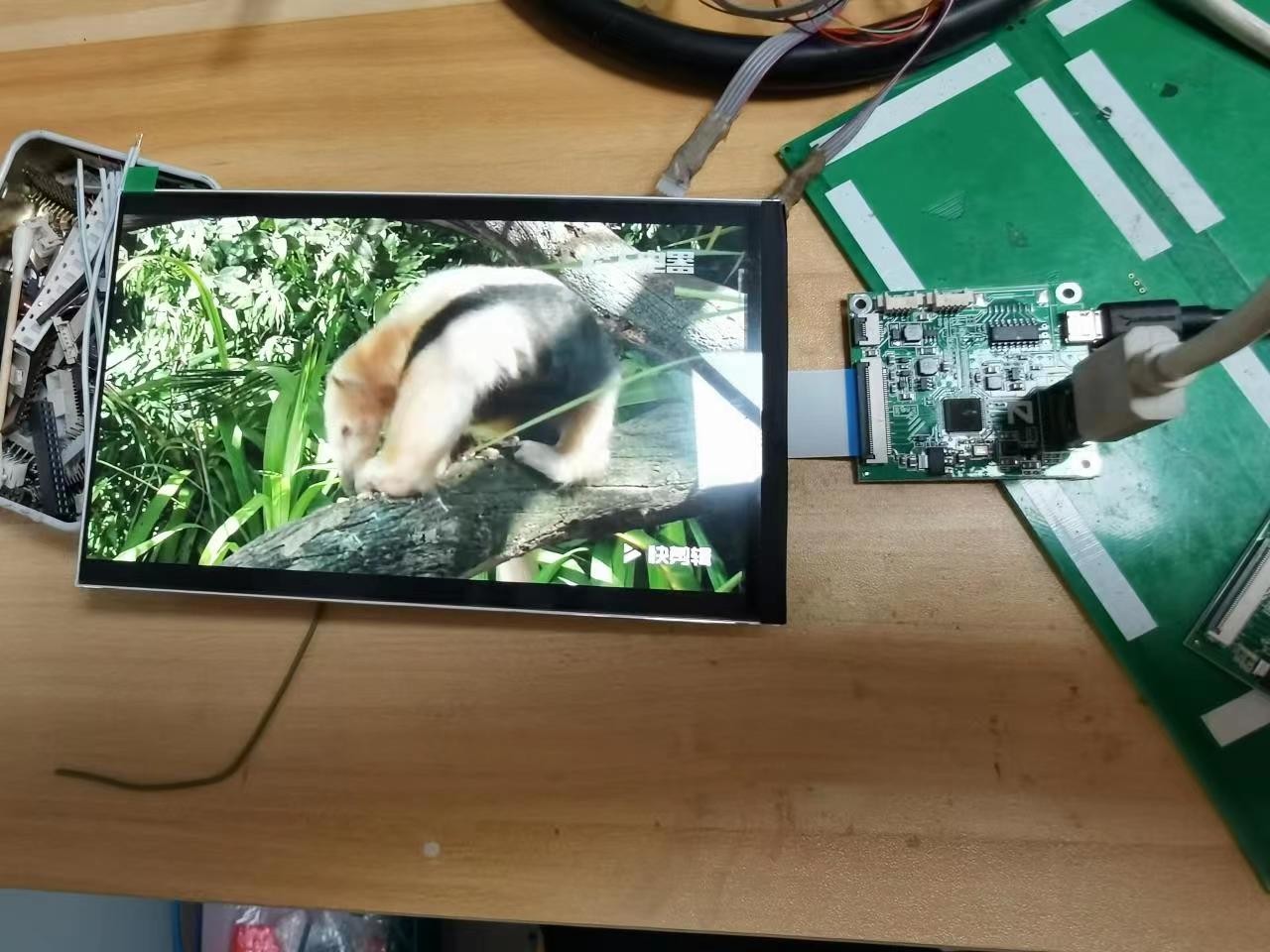

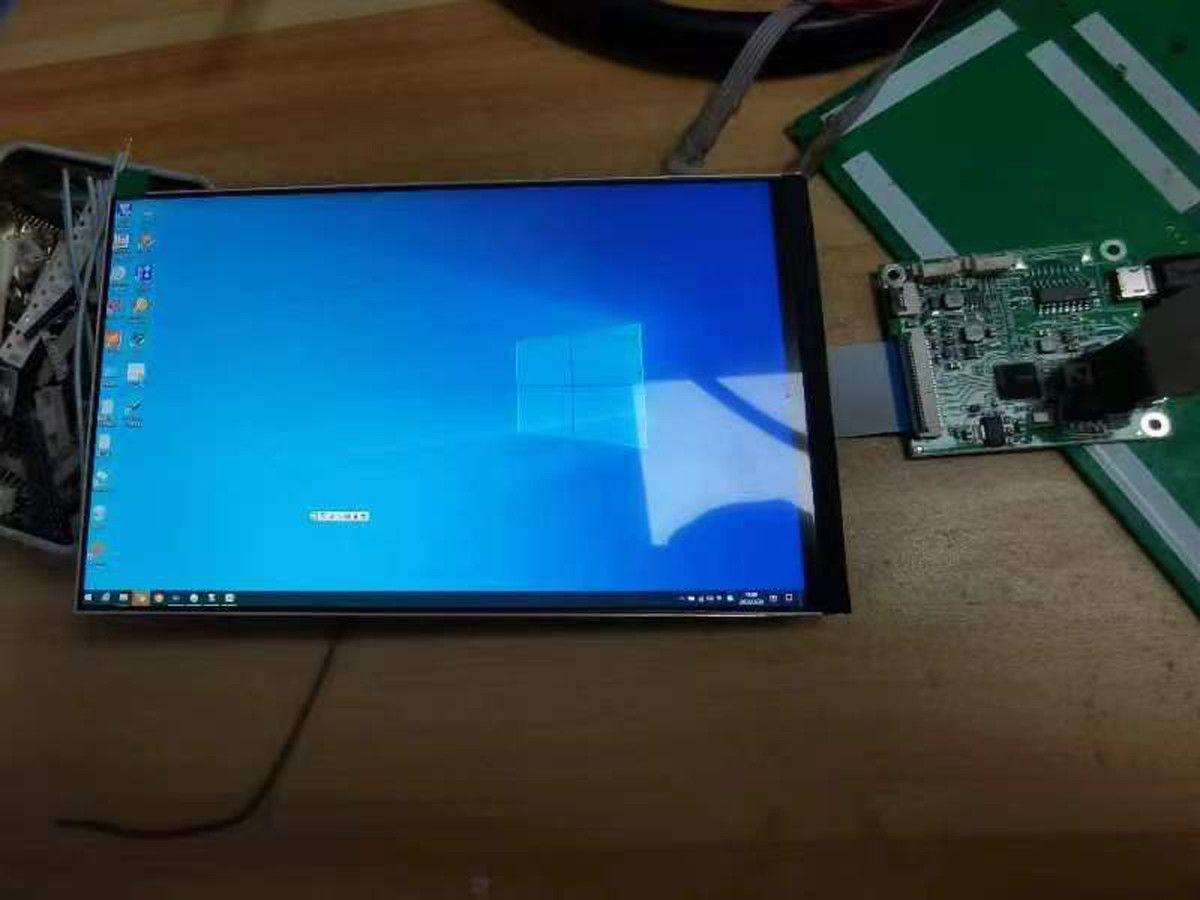

B:Product Picture

7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 0



7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 1



7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 2


C: Drawing



7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 37 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 4



D:TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 5



TFT structure  as below

7 Inch TFT LCD Display, 1200x1920 Resolution , 800CD/M2 HDMI Interface 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
