1.2 Inch Round Oled Display Module , 390X390 Resolution, Mipi Interface IC W022 Driving

Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX120AWN20A
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 50K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology AMOLED Display Module Name Watch Oled Display
Size 1.2 " Resolution 390X390
Brightness 350cd/m2 Interface MIPI
High Light

1.2 Inch round oled display module

,

round oled display module 390X390

,

mipi round oled

Leave a Message
Product Description

ESHX120AWN20A is 1.2 Inch Round Color Oled Display Module, 390X390 Resolution, 20 pins Mipi Interface, Driving IC W022,brightness is 350CD/M2



A:Prdocut Parameter

Part NO. ESHX120AWN20A
Display Technology AMOLED
Diagonal Screen Size 1.2 inch round OLED
Resolution 390X390
Viewing Angle all
Operation Temperature -20 ~ +70 ℃
Active Area (mm) 30.42X30.42MM
Panel size(mm) 33.22X33.75X0.656MM
Brightness(cd/m2) 350CD/M2
Interface MIPI
Pin q'ty 20 PINS
Contrast Ratio 10000:1
driving IC W022
touch panel /



B: Product Picture

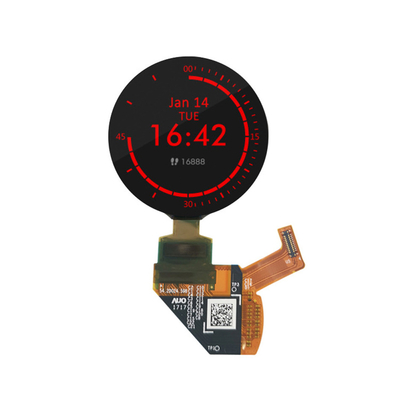

1.2 Inch Round Oled Display Module , 390X390 Resolution,  Mipi Interface IC W022 Driving 0

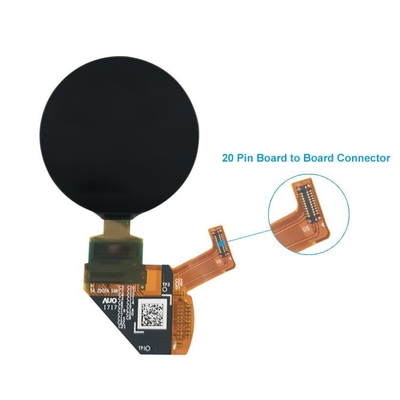

1.2 Inch Round Oled Display Module , 390X390 Resolution,  Mipi Interface IC W022 Driving 1

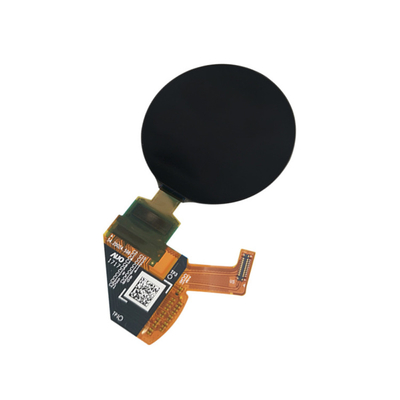

1.2 Inch Round Oled Display Module , 390X390 Resolution,  Mipi Interface IC W022 Driving 2

C: Drawing &Pin definition

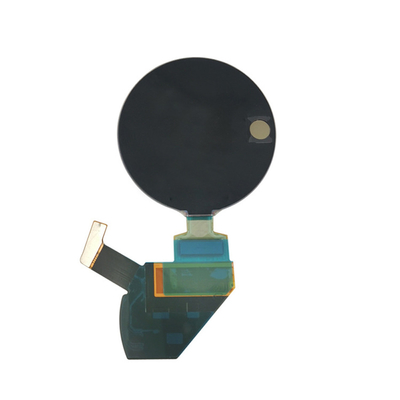

1.2 Inch Round Oled Display Module , 390X390 Resolution,  Mipi Interface IC W022 Driving 3

1.2 Inch Round Oled Display Module , 390X390 Resolution,  Mipi Interface IC W022 Driving 4

D: Oled Product Knowledge




OLED Advantages:



OLED sets are lighter and thinner than LCDs , high contrast, high color saturation, lower consumption





OLED Disadvantages

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT


E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity
2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity
4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity
70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity
100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity
10 20 30 40 50 Unit:Thousand
piece/Day



G: Product Application



1.safety box &instrument

2.lock&smart home

3.transmitter&watch

4.watch&adio

5.collimator&navigator



H: AMOLED Display Characteristics



1.Self-E missive Pixels:

2.Contrast Ratio:

3.Color Accuracy and Vibrancy:

4.Viewing Angles:

5.Power Efficiency:

6.Thinness and Flexibility:

7.Response Time:



I:How does the power efficiency of AMOLED displays compare to other display technologies?



1.Power Consumption:

  • AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
  • LCD and LED displays, on the other hand, require a constant backlight that consumes power regardless of the displayed content.

2.Content Dependency:

  • AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.
  • LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.



3.Brightness Control:

  • AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.
  • LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness

4.Display Size

  • AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.
  • Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
