1.19 Inch Sunlight Readable TFT， 240x240 Transflective Round Display
| Place of Origin | China |
|---|---|
| Brand Name | huaxin |
| Certification | ISO14001/ISO9001/IATF16949 |
| Model Number | ESHX012M387A |
| Minimum Order Quantity | 1000 |
| Price | USD9.09 |
| Delivery Time | 6weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Round | Application | Sunlight Readable |
|---|---|---|---|
| Size | 1.19 | Resolution | 240x240 |
| High Light | 1.19 inch Sunlight Readable TFT,Sunlight Readable TFT 240x240,transflective round tft display |
||
You can tick the products you need and communicate with us in the message board.
| ITEM | specification | |
|---|---|---|
| Model Number | ESHX012M387A | |
| size | 1.19 inch round TFT | |
| LCD Type | MIP ECB normally black mode | |
| display mode | transflective | |
| Number of pixels | 240x240 | |
| Active area | 30.24 | |
| OutlineSize(W*H*T) | 33.04x33.97*0.871mm | |
| Viewing direction | FREE view | |
| LCM Driver IC | / | |
| LCM interface | RGB interface | |
| PIN number | 24pins | |
| LED number | 2pcs | |
| operating temperature | -20~70 | |
| storage temperature | -30 to +80 | |
| Luminance | Sunlight readable |
Product Description
ESHX012M387A is 1.19 inch round TFT display, display mode is transflective and number of pixels is 240x240 and view direction is free, 24 pins RGB interface, it is one of sunlight readable TFT display
A: Product Parameter
| ITEM | specification |
| Model Number | ESHX012M387A |
| size | 1.19 inch round TFT |
| LCD Type | MIP ECB normally black mode |
| display mode | transflective |
| Number of pixels | 240x240 |
| Active area | 30.24 |
| OutlineSize(W*H*T) | 33.04x33.97*0.871mm |
| Viewing direction | FREE view |
| LCM Driver IC | / |
| LCM interface | RGB interface |
| PIN number | 24pins |
| LED number | 2pcs |
| operating temperature | -20~70 |
| storage temperature | -30 to +80 |
| Luminance | Sunlight readable |

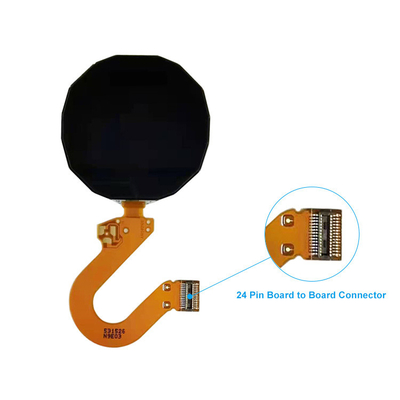

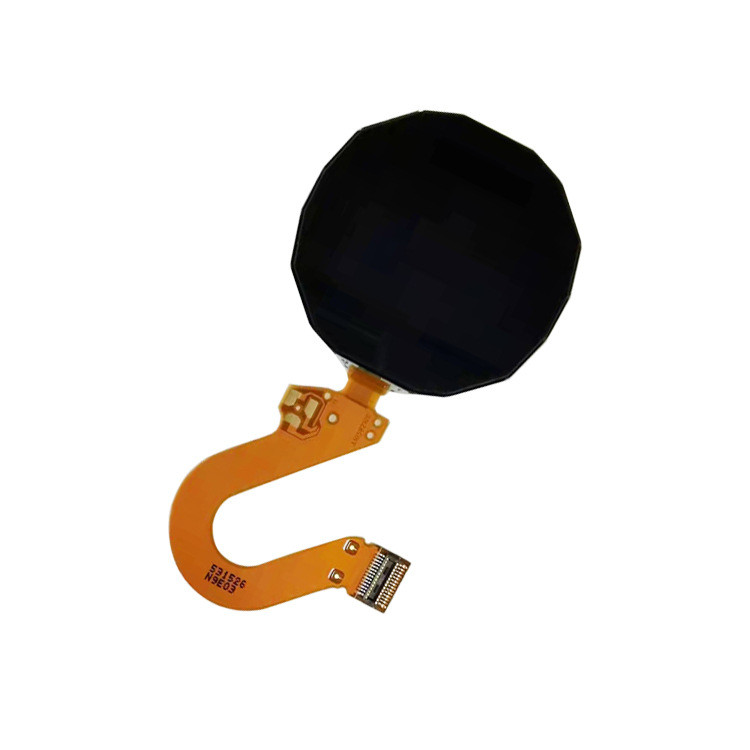

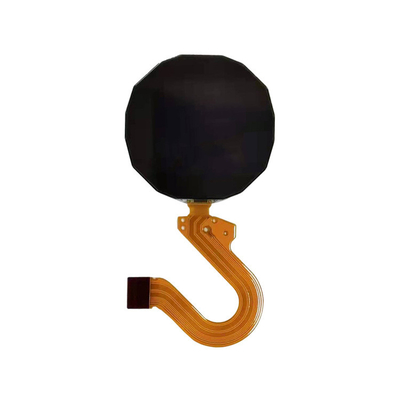

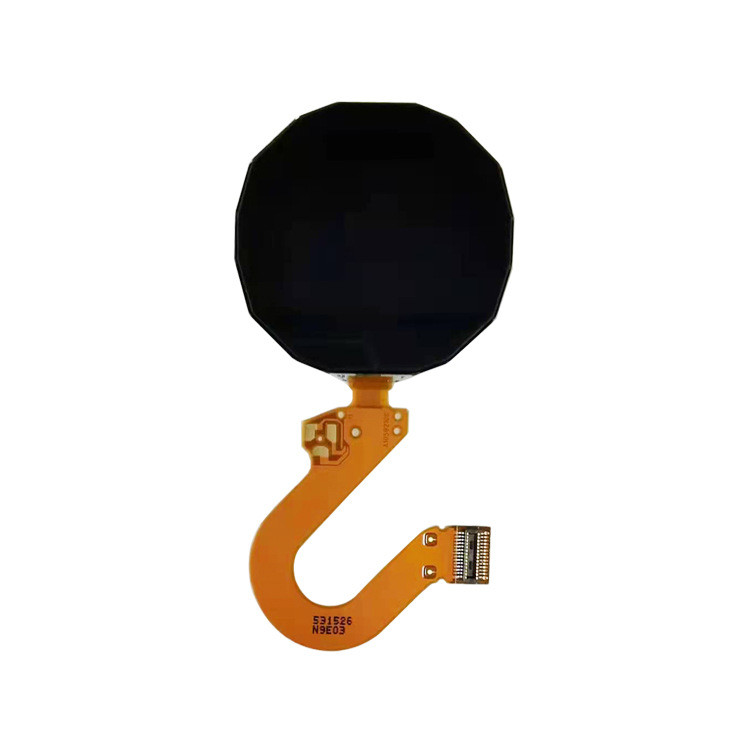

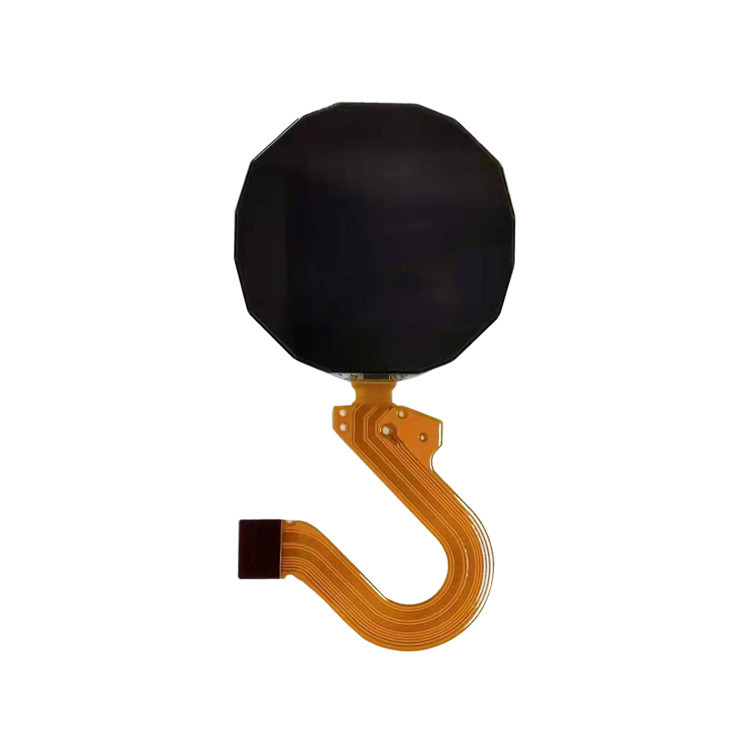

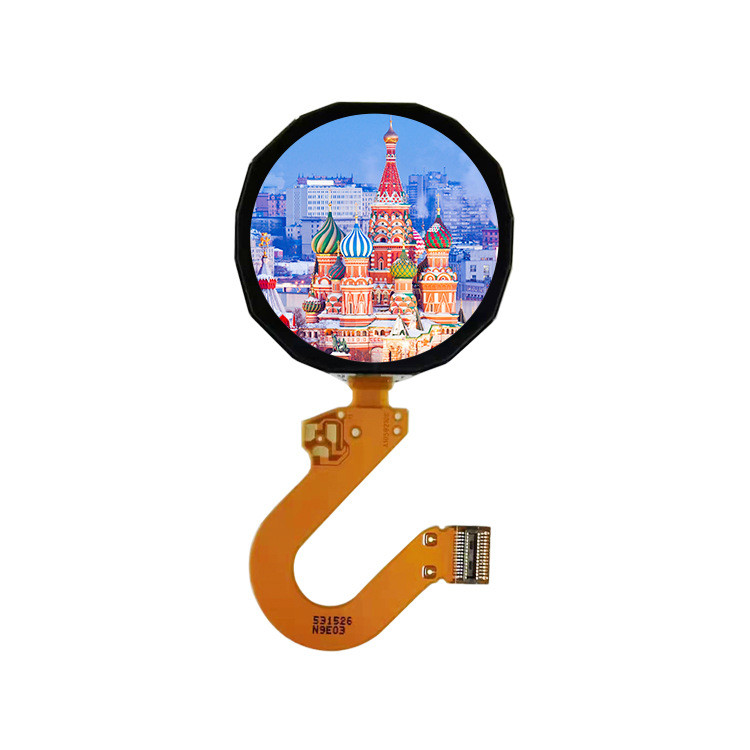

B:Product Picture
C: Drawing
D: TFT Product Knowledge
tft substrate input and CF substrate input flow chart as below
TFT structure as below
E: Company Information
Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product
our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module
- Huaxin Technology (Enshi)Co.,LTD
- Hubei.Enshi
- Date of foundation:2009
- high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
- LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
- LCM includes: COB,TBA, COG,TP,LED backlight and other series
- register capital:twenty million
- current staff:500+
- RD accounts for 10%
- QC accounts for 15%
F: Production Capacity
| Annual Production Capacity |
2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark | ||
| LCD Producton Capacity |
4.5 | 9 | 9 | 9 | 9 | Unit:thousands of logarithms/Day |
||
| LCM Producton Capacity |
70 | 150 | 300 | 450 | 450 | Unit:Thousand piece/Day |
||
| Backlight Producton Capacity |
100 | 200 | 300 | 500 | 500 | Unit:Thousand piece/Day |
||
| OLED Producton Capacity |
10 | 20 | 30 | 40 | 50 | Unit:Thousand piece/Day |
||
G: Product Application
1. car navigation&printer
2. video call & advertising
3.Automotive &medical devices
4.fitness equipment&handheld devices
5.industial control and home applicance
H: TFT Display Characteristics
1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.
4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.
6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.
7.Wide Applications:
I: Are there any drawbacks or limitations to using TFT displays?
1. Limited Viewing Angles:
2. Limited Contrast Ratio
3. Backlighting and Power Consumption
4. Response Time and Motion Blur
5. Limited Flexibility
6. Limited Color Gamut
