4.45 Inch AMOLED Display Screen with 568X1210 Ultra High Definition and 600cd/m² Brightness for Gaming and Outdoor Use
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX0445S001AM |
| Document | ESHX0445S001AM -SPEC.pdf |
| Minimum Order Quantity | 1~1000 |
| Price | $26~$25.2 |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 50K per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Display Technology | AMOLED Module | Name | Oled Display |
|---|---|---|---|
| Size | 4.45" | Resolution | 560x1210 |
| Brightness | 600c/d | Interface | MIPI |
| Driving IC | SD5207 | Touch Panel IC | CST3530 |
| Highlight | 4.45 inch amoled display screen,568X1210 amoled display screen,High Refresh Rate amoled display screen |
||
You can tick the products you need and communicate with us in the message board.
Product Description
4.45 Inch AMOLED Display Screen With Oncell Touch
Ultra high definition 568*1210 resolution display with high brightness, outdoor wide-temperature capability, and high refresh rate for gaming applications.
Product Parameters
| Part NO. | ESHX0445S001AM |
|---|---|
| Display Technology | AMOLED |
| Diagonal Screen Size | 4.45 INCH |
| Resolution | 568*1210 |
| Viewing Angle | All View |
| Operation Temperature | -20~70 |
| Panel Size(mm) | 49.13H*103.55V*0.75T(mm) |
| Active Area (mm) | 47.312H*100.914V(mm) |
| Pixel Pitch (mm) | 0.0834mm |
| Brightness(cd/m²) | 600CD/M² |
| Interface | MIPI |
| Drive IC | SD5207 |
| TP Type | On cell |

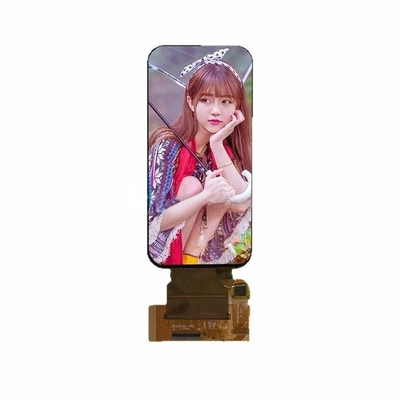

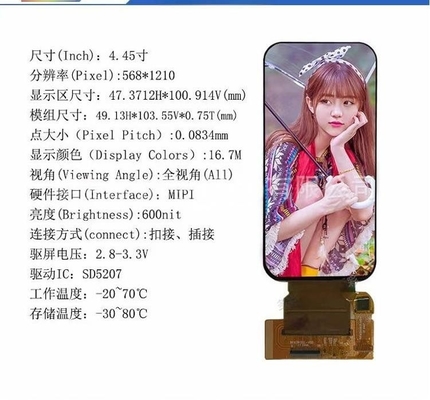

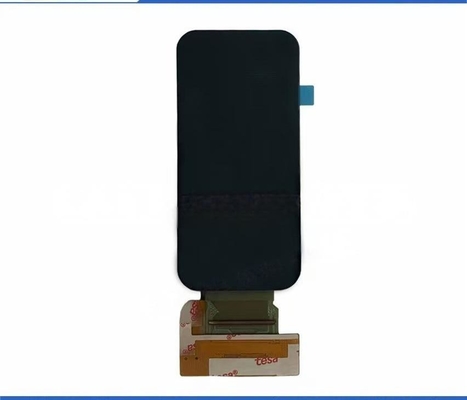

Product Images
Technical Drawing
OLED Product Knowledge
OLED Advantages:
- Lighter and thinner than LCDs
- High contrast ratio
- High color saturation
- Lower power consumption
OLED Disadvantages:
- Higher cost compared to LCD and TFT
- Shorter lifespan than LCD and TFT
Company Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
Company Advantages:
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years experienced engineering team
- Custom product design capability
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Company Details:
- Specializes in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD product lines: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM product lines: COB, TBA, COG, TP, LED backlight and other series
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Safety box & instrument
- Lock & smart home
- Transmitter & watch
- Watch & radio
- Collimator & navigator
AMOLED Display Characteristics
- Self-Emissive Pixels
- High Contrast Ratio
- Superior Color Accuracy and Vibrancy
- Wide Viewing Angles
- Excellent Power Efficiency
- Thinness and Flexibility
- Fast Response Time
Power Efficiency Comparison
How does the power efficiency of AMOLED displays compare to other display technologies?
1. Power Consumption:
- AMOLED displays consume power per-pixel, with dark/black pixels using minimal power
- LCD/LED displays require constant backlight power regardless of content
2. Content Dependency:
- AMOLED excels with dark content as pixels can turn off completely
- LCD/LED power consumption remains relatively constant across content
3. Brightness Control:
- AMOLED can adjust pixel brightness individually for better efficiency
- LCD/LED typically have fixed backlight brightness levels
4. Display Size:
- AMOLED more efficient for smaller displays where power scales with pixels
- Larger LCD/LED displays may require more power-hungry backlights
