4 Inch 1080*2160 Resolution tft color display MIPI Interface Driving IC HX8399C
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX40203ACT |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | Lcd Display | Name | LCD Tft Display |
|---|---|---|---|
| Size | 4" | Resolution | 640*1136 |
| Interface | MIPI Interface | Driver | HX8394F |
| View Angle | ALL | ||
| Highlight | 4 Inch tft panel,1080*2160 tft panel,4 Inch tft lcd screen |
||
Product Description
4 Inch 1080*2160 Resolution TFT Color Display with MIPI Interface (HX8399C)
ESHX40203ACT is a 4-inch TFT LCD display with 640*1136 resolution, MIPI interface, free viewing angle, and HX8394F driving IC.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | ESHX40203ACT |
| Display Type | 4 inch TFT display module |
| Resolution | 640*1136 |
| Panel Size (mm) | 57.5(W) * 103(H) * 3.58(T) |
| Active Area (mm) | 49.92(W) * 88.61(H) |
| View Direction | ALL |
| Interface | MIPI |
| Driving IC | HX8394F |

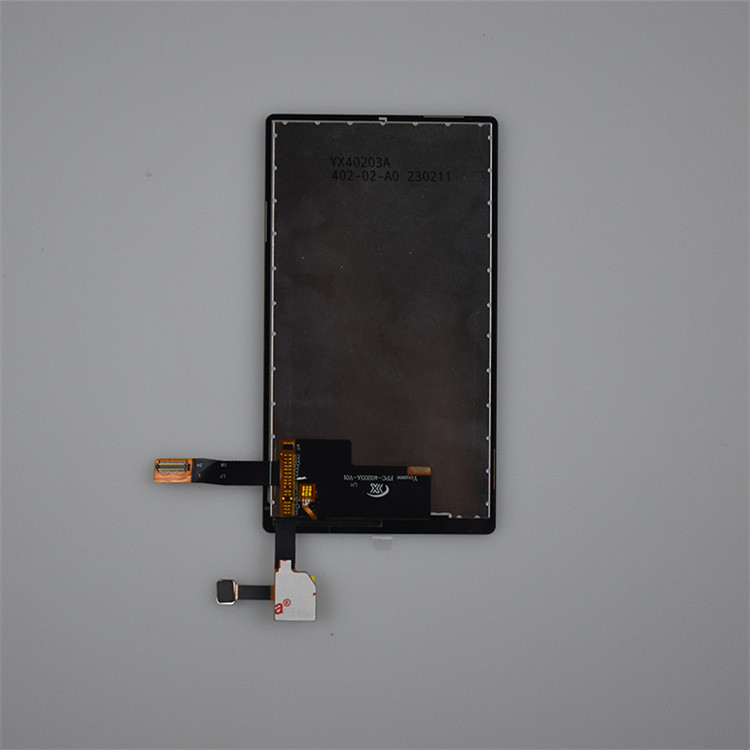

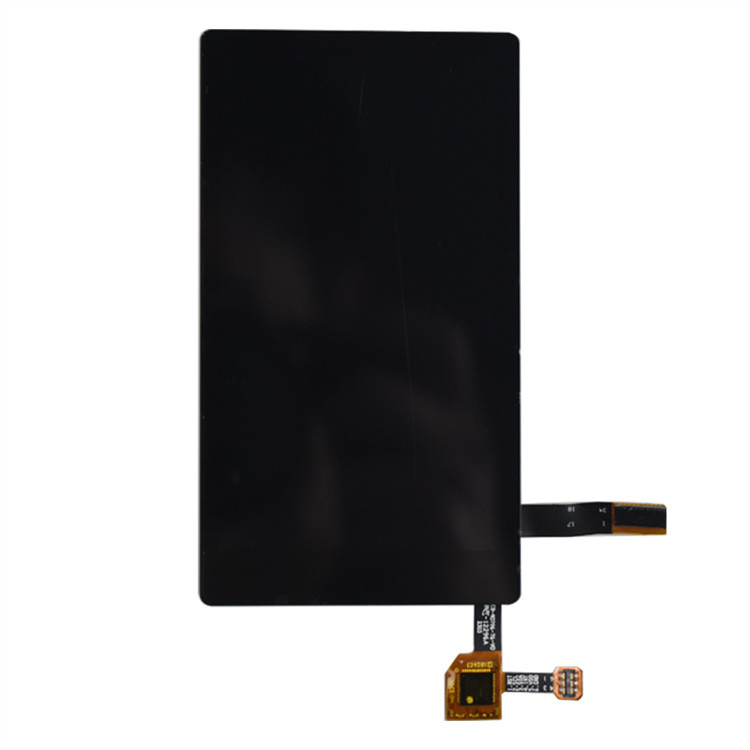

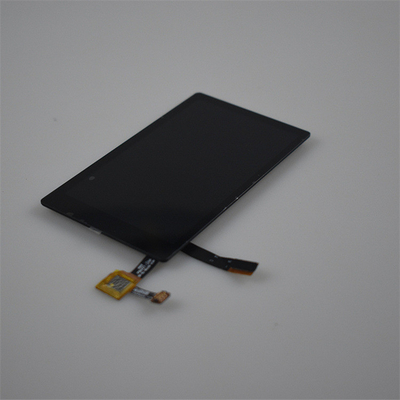

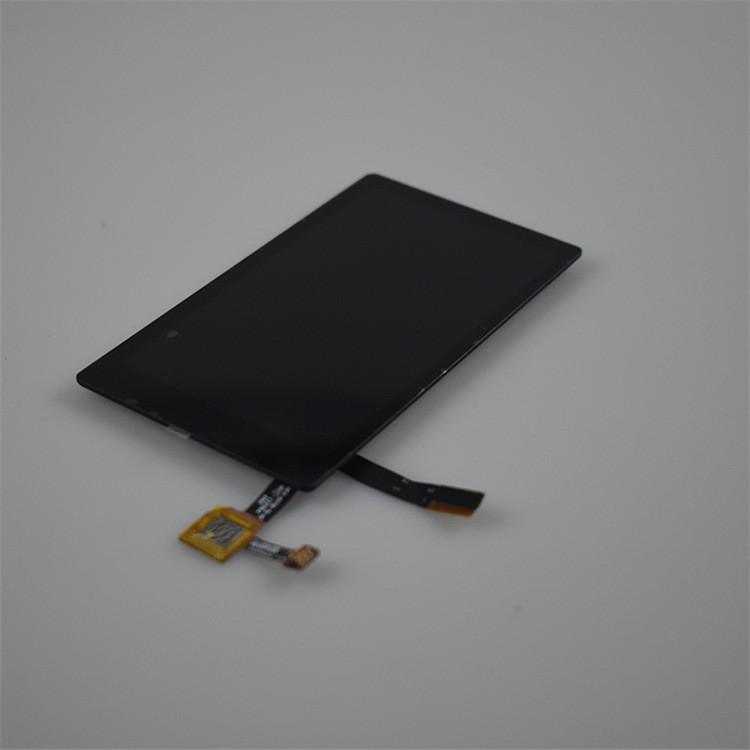

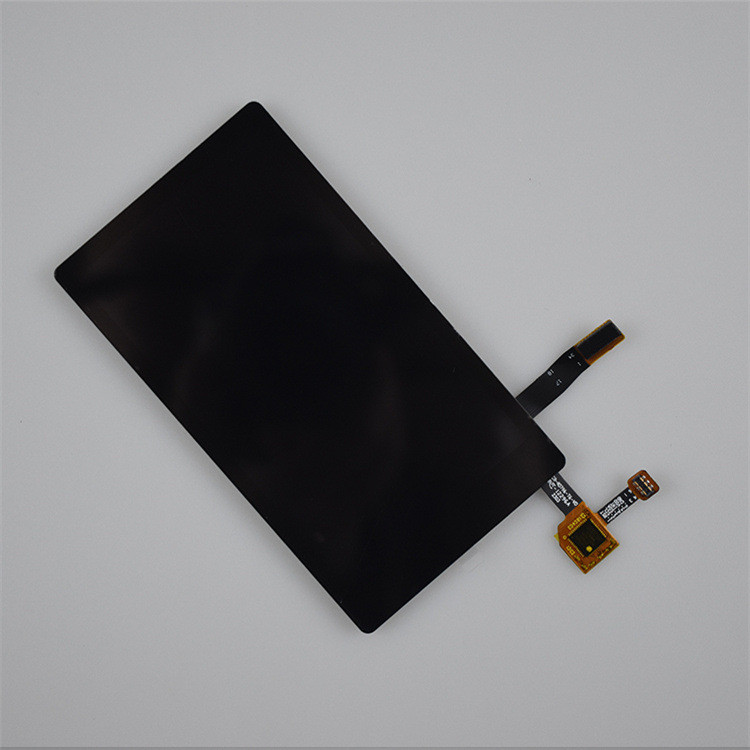

Product Images
TFT Technology Overview
TFT substrate input and CF substrate input flow chart:
TFT structure diagram:
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD - Hubei, Enshi (Founded 2009)
High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.
Company Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Highly automated processes for efficiency
- 20+ years of LCD industry expertise
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Statistics
- Registered capital: 20 million
- 500+ employees
- 10% R&D staff
- 15% quality control staff
Production Capacity (Thousands/Day)
| Product | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|
| LCD | 4.5 | 9 | 9 | 9 | 9 |
| LCM | 70 | 150 | 300 | 450 | 450 |
| Backlight | 100 | 200 | 300 | 500 | 500 |
| OLED | 10 | 20 | 30 | 40 | 50 |
Product Applications
- Car navigation & printers
- Video calling & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control & home appliances
TFT Display Advantages
- Excellent image quality with high resolution and color accuracy
- Fast response times for smooth motion
- Wide viewing angles with minimal color shift
- Energy efficient operation
- Available in various sizes from small to large panels
- LED backlighting for brightness control
- Wide range of industrial applications
TFT Display Limitations
- Limited viewing angles compared to some technologies
- Moderate contrast ratios
- Backlighting increases power consumption
- Potential motion blur in fast-moving content
- Limited flexibility in panel design
- Color gamut may be narrower than some alternatives
