6 Inch 1080*2160 Resolution tft color display, MIPI Interface, Driving IC HX8399C
| Place of Origin | China |
|---|---|
| Brand Name | HuaXin |
| Certification | ISO14001/ ISO9001/IATF16949 |
| Model Number | ESHX60023A |
| Minimum Order Quantity | 1000 |
| Price | negotiation |
| Packaging Details | blister+foam box+bubble bag+inside carton+master carton |
| Delivery Time | 6weeks~8weeks |
| Payment Terms | T/T |
| Supply Ability | 100K per month |
Product Details
| Display Technology | TFT Lcd Module | Name | LCD Tft Display |
|---|---|---|---|
| Size | 6" | Resolution | 1080*2160 |
| Interface | MIPI Interface | Driver | HX8399C |
| View Angle | ALL | ||
| Highlight | HX8399C lcd tft module,MIPI Interface lcd tft module,6 Inch tft lcd screen |
||
Product Description
6 Inch 1080×2160 Resolution TFT Color Display with MIPI Interface (HX8399C Driving IC)
The ESHX60023A is a 6-inch TFT LCD display with 1080×2160 resolution, MIPI interface, free viewing angle, and HX8399C driving IC.
Product Parameters
| Parameter | Specification |
|---|---|
| Part No. | ESHX60023A |
| Display Type | 6 inch TFT display module |
| Resolution | 1080×2160 |
| Panel Size (mm) | 70.24(W) × 142.28(H) × 1.7(T) |
| Active Area (mm) | 68.04(W) × 136.08(H) |
| View Direction | ALL |
| Interface | MIPI |
| Driving IC | HX8399C |

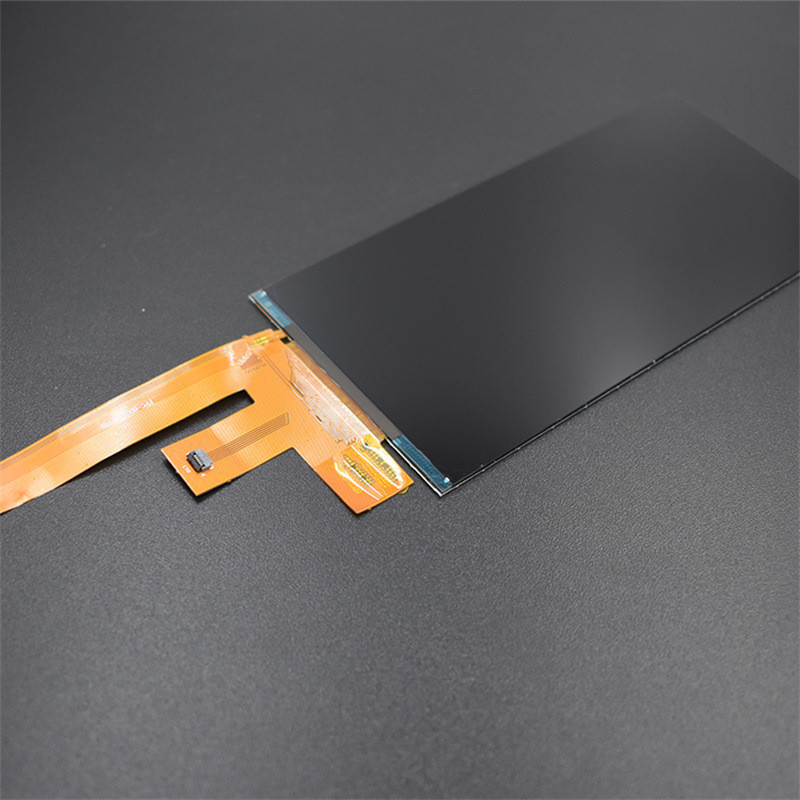

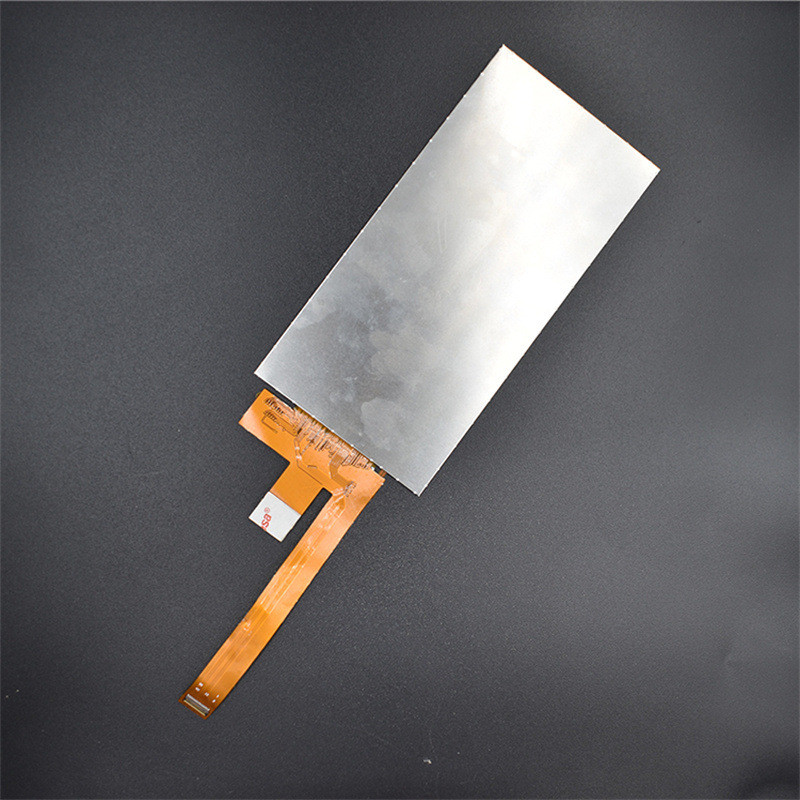

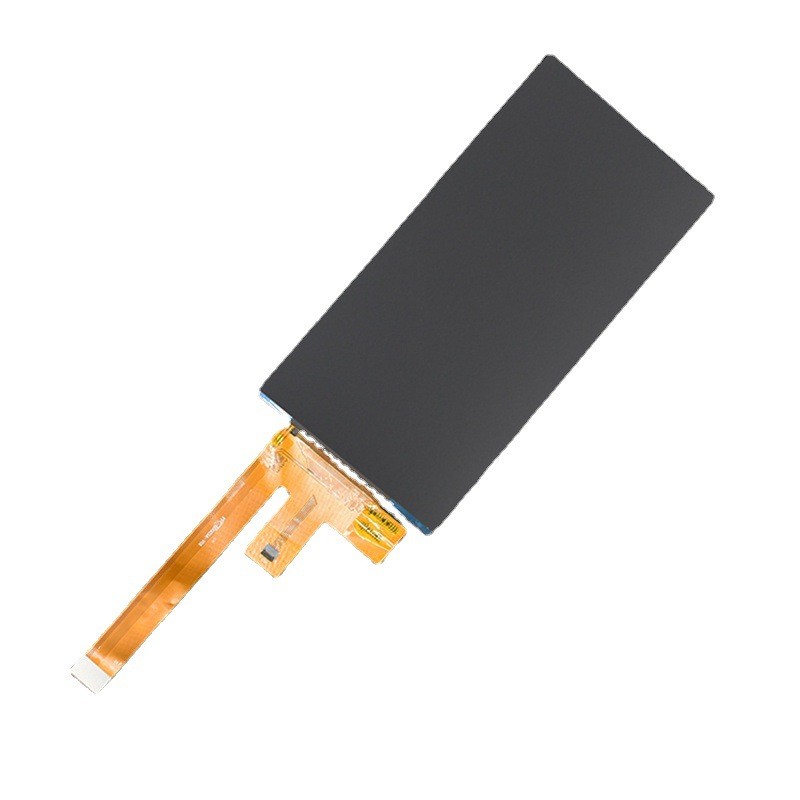

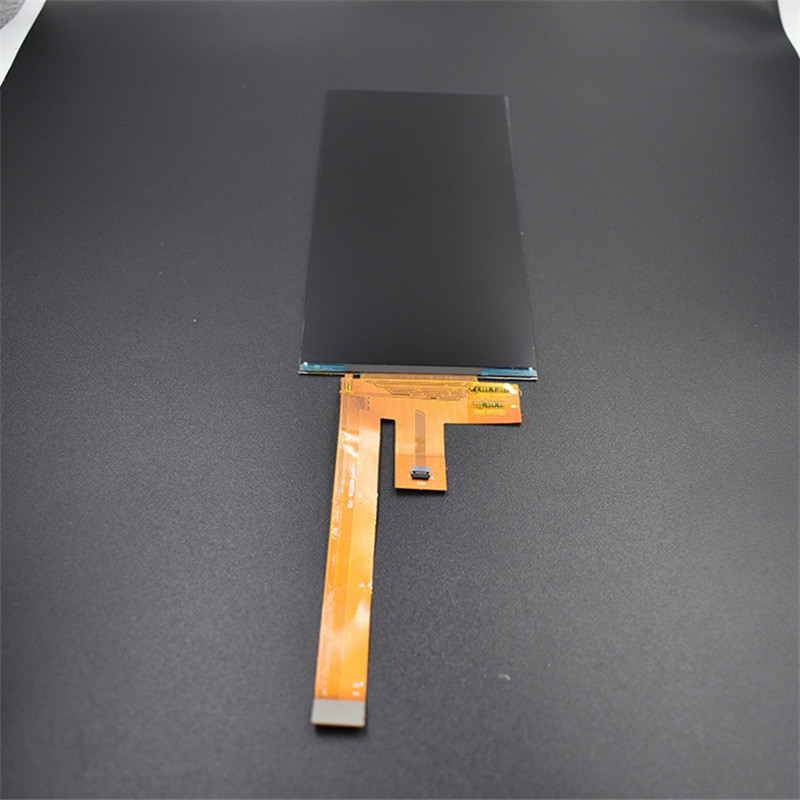

Product Images
TFT Product Knowledge
TFT substrate input and CF substrate input flow chart:
TFT structure diagram:
Company Information
Huaxin Technology Advantages:
- Cost-effective factory base located in inland city
- Most advanced equipment ensuring stable quality
- Fully automated processes for efficiency and quality
- Professional engineers with 20+ years experience in LCD field
- Customized product design capabilities
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Company Details:
- Huaxin Technology (Enshi) Co., LTD
- Location: Hubei, Enshi
- Founded: 2009
- High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD product lines: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM product lines: COB, TBA, COG, TP, LED backlight and other series
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliance
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast switching of pixels
- Viewing Angles: Wide angles with minimal color shift
- Energy Efficiency: Lower power consumption than other display technologies
- Size and Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: Typically uses LED backlighting
- Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
- Viewing Angles: Some models may have limited optimal viewing angles
- Contrast Ratio: May be limited compared to other technologies
- Power Consumption: Backlighting can increase power usage
- Motion Blur: Potential for blur in fast-moving images
- Flexibility: Less flexible than some newer display technologies
- Color Gamut: May have limited color range in some models
