1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface

  • 1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface
  • 1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface
  • 1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface
  • 1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface
  • 1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ ISO9001/IATF16949
Model Number ESHX032TBJ01
Minimum Order Quantity 1000pcs
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Display Technology Lcd Display Name TFT Display
Size 3.2 " Resolution 1024*768
Brightness 600cd/m2 View Angle Free View Angle
Interface MIPI
Highlight

1024*768 Resolution TFT LCD Module

,

free view angle LCD TFT Module

,

600nits TFT LCD Display Module
Leave a Message
Product Description
ESHX032TBJ01    is 3.2  inch TFT display module  , resolution is 1024*768 and brightness is 600c/d and interface is MIPI, view angle is free


A:Product Parameter

Part NO. ESHX032TBJ01
Panel size 3.2 inch tft display
Resolution 1024*768
Viewing Angle all
Operation Temperature -20~70
storage temperature -30~80
Panel Size(mm) 69.6X55.5X2.1
AA size(mm) 64.51x48.38
Brightness(cd/m2) 600c/d
Interface MIPI

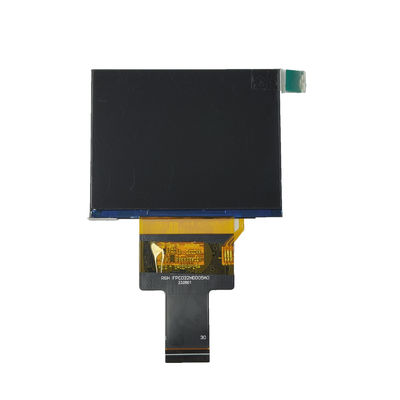

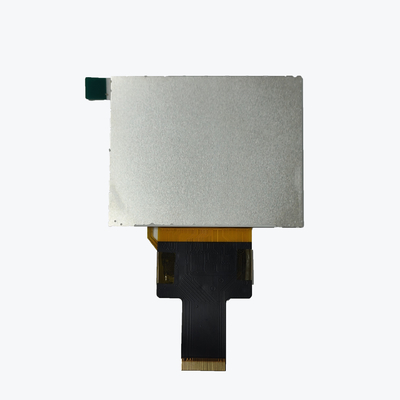

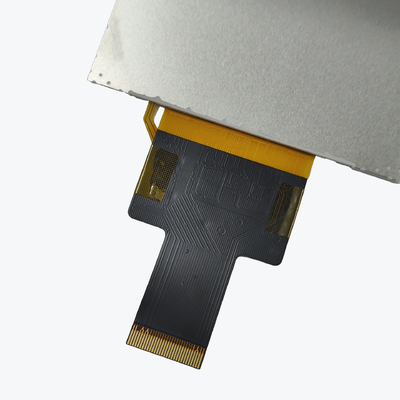

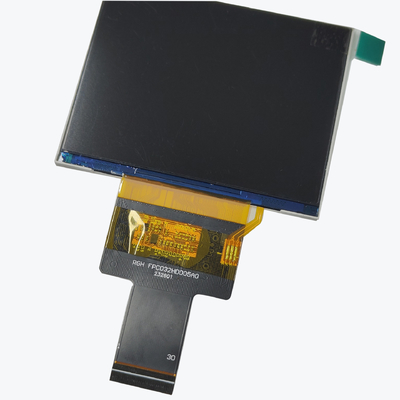

B:Product Picture
1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 01024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 11024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 21024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 3

C: Drawing

1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 4



D: TFT Product  Knowledge



tft substrate input and CF substrate input flow chart as below


1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 5



TFT structure  as below

1024*768 Resolution, TFT LCD Display Module, 3.2 Inch, 600nits , Mipi Interface 6




E: Company Information

Huaxin Advantage:
1. factory base located at inland city which has cost effective
2. most advanced new equipment which can keep quality stable
3. most processes using fully automatic equipment which has effeciency and stable quality
4. professional engineers and production leaders who works in lcd field for more than 20 years
5. self design for customized product

our certificates
1.ISO14001/
2.ISO9001/IATF16949
3.SGS of LCD module



  • Huaxin Technology (Enshi)Co.,LTD
  • Hubei.Enshi
  • Date of foundation:2009
  • high technology enterprise mainly work on research and development, producing and sells LCD,LCM,TFT,backlight,OLED
  • LCD includes: VA,TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB,TBA, COG,TP,LED backlight and other series
  • register capital:twenty million
  • current staff:500+
  • RD accounts for 10%
  • QC accounts for 15%



F: Production Capacity



Annual Production
Capacity		 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Producton
Capacity		 4.5 9 9 9 9 Unit:thousands of
logarithms/Day
LCM Producton
Capacity		 70 150 300 450 450 Unit:Thousand
piece/Day
Backlight Producton
Capacity		 100 200 300 500 500 Unit:Thousand
piece/Day
OLED Producton
Capacity		 10 20 30 40 50 Unit:Thousand
piece/Day





G: Product Application



1. car navigation&printer

2. video call & advertising

3.Automotive &medical devices

4.fitness equipment&handheld devices

5.industial control and home applicance



H: TFT Display Characteristics



1.Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.



2.Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.



3.Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions and angles without significant color shifts or loss of image quality.



4.Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.



5.Size and Flexibility: TFT displays can be manufactured in various sizes, ranging from small screens for handheld devices to large panels for TVs and monitors.



6.Backlighting: Most TFT displays require a backlighting system, such as LED (Light-Emitting Diode) backlighting, to illuminate the screen.



7.Wide Applications:



I: Are there any drawbacks or limitations to using TFT displays?



1. Limited Viewing Angles:

2. Limited Contrast Ratio

3. Backlighting and Power Consumption

4. Response Time and Motion Blur

5. Limited Flexibility

6. Limited Color Gamut
