3.5 Inch TFT color display , 1920*1080 Resolution, 900nits 50 Pin LVDS Interface

  • 3.5 Inch TFT color display , 1920*1080 Resolution, 900nits 50 Pin LVDS Interface
  • 3.5 Inch TFT color display , 1920*1080 Resolution, 900nits 50 Pin LVDS Interface
  • 3.5 Inch TFT color display , 1920*1080 Resolution, 900nits 50 Pin LVDS Interface
  • 3.5 Inch TFT color display , 1920*1080 Resolution, 900nits 50 Pin LVDS Interface
  • 3.5 Inch TFT color display , 1920*1080 Resolution, 900nits 50 Pin LVDS Interface
Place of Origin China
Brand Name HuaXin
Certification ISO14001/ISO9001/IATF16949
Model Number ESHX035FHD05
Minimum Order Quantity 1000
Price negotiation
Packaging Details blister+foam box+bubble bag+inside carton+master carton
Delivery Time 6weeks~8weeks
Payment Terms T/T
Supply Ability 100K per month
Product Details
Display Technology Lcd Display Name TFT Display
Size 3.5 " Resolution 1920*1080
Brightness 900cd/m2 View Angle Free View Angle
Interface LVDS / 50pin
Highlight

3.5 Inch TFT LCD Display Module

,

1920*1080 resolution TFT Display Module

,

 LVDS interface LCD TFT Display
Leave a Message
Product Description
3.5 Inch TFT Color Display, 1920×1080 Resolution, 900nits 50 Pin LVDS Interface
ESHX035FHD05 is a 3.5 inch TFT display module with high resolution and high brightness, featuring 1920×1080 resolution, 900nits brightness, and 50pin LVDS interface.
Product Parameters
Parameter Value Unit
Part No. ESHX035FHD05
Size 3.5 inches
Resolution 1920×1080 pixels
Active Area 77.76×43.74 mm
Outline Dimension 87.1×56.8×2.7 mm
Pixel Pitch TBD mm
Color Depth 16.7 M colors
Display Mode Normally black Transmissive
Surface Treatment TBD
Interface LVDS 50PIN
View Angle 80/80/80/80
Brightness 900 Nits
Contrast Ratio 1000
Response Time 40 ms
Operating Temperature -20 ... +70 °C
Storage Temperature -30 ... +80 °C
Product Images

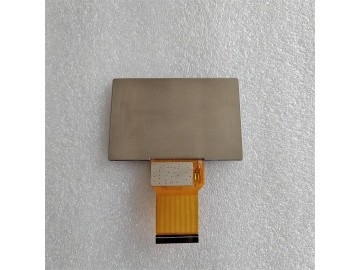

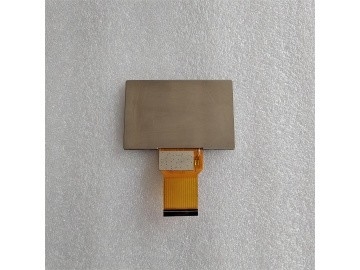

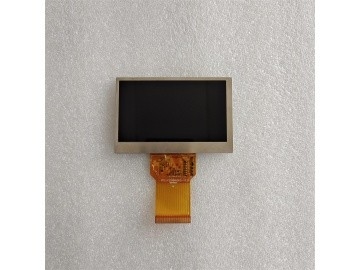

3.5 inch TFT display front view 3.5 inch TFT display side view
Product Drawing

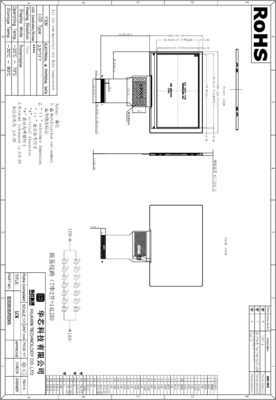

3.5 inch TFT display technical drawing
TFT Product Knowledge
TFT substrate input and CF substrate input flow chart:
TFT and CF substrate input flow chart
TFT structure:
TFT structure diagram
Company Information
Huaxin Advantage:
  1. Factory base located at inland city which has cost effective
  2. Most advanced new equipment which can keep quality stable
  3. Most processes using fully automatic equipment which has efficiency and stable quality
  4. Professional engineers and production leaders who work in LCD field for more than 20 years
  5. Self design for customized product
Our Certificates:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

Hubei, Enshi

Date of foundation: 2009

High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

LCM includes: COB, TBA, COG, TP, LED backlight and other series

Register capital: twenty million

Current staff: 500+

R&D accounts for 10%

QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: Excellent image quality with high resolution, sharpness, and color accuracy
  • Response Time: Fast response times for quick pixel switching
  • Viewing Angles: Wide viewing angles with minimal color shifts
  • Energy Efficiency: More energy-efficient than other display technologies
  • Size and Flexibility: Available in various sizes from small handheld devices to large panels
  • Backlighting: Typically uses LED backlighting for screen illumination
  • Wide Applications: Suitable for diverse industries and uses
TFT Display Limitations
  • Limited Viewing Angles: Compared to some newer technologies
  • Limited Contrast Ratio: May not achieve deep blacks
  • Backlighting and Power Consumption: Requires backlight which affects power usage
  • Response Time and Motion Blur: May show blur in fast-moving images
  • Limited Flexibility: Rigid structure compared to flexible displays
  • Limited Color Gamut: May not cover the full color spectrum
